ARM Mali-T604 MP4 vs ARM Mali-T624

ARM Mali-T604 MP4

► remove from comparison ARM Mali-T604 MP4

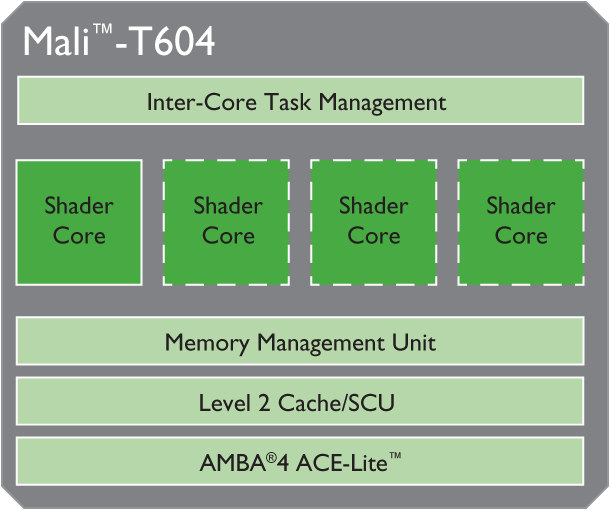

The ARM Mali-T604 MP4 is an integrated graphics solution that launched in Samsung’s smartphone and tablet SoC Exynos 5250 with four cores. Besides OpenGL ES 3.0, the GPU also supports OpenCL 1.1 as well as DirectX 11. The Mali-T604 can be scaled from 1 up to 4 clusters/cores depending on the requirements of the chip.

ARM Mali-T624

► remove from comparison

The ARM Mali-T624 is an integrated graphics solution for ARM based processors. It can be built with 1 to 4 clusters/cores. The unified shader architecture supports OpenGL ES 3.0, OpenCL 1.1 as well as DirectX 11 (Feature Level 9_3).

show full text
ARM Mali-T604 MP4ARM Mali-T624
Mali-T600 Series
Mali-T628 MP6 compare 6 @ 0.6 GHz
Mali-T628 MP4 compare 4 @ 0.6 GHz
Mali-T604 MP4 4 @ 0.53 GHz
Mali-T624 4
Mali-T628 MP6 compare 6 @ 0.6 GHz
Mali-T628 MP4 compare 4 @ 0.6 GHz
Mali-T604 MP4 4 @ 0.53 GHz
Mali-T624 4
CodenameMidgard
Pipelines4 - unified4 - unified
Core Speed533 MHz
Shared Memorynoyes
APIDirectX 11, OpenGL ES 3.0DirectX 11, OpenGL ES 3.0
technology28 nm28 nm
Date of Announcement12.11.2012 07.08.2013
Link to Manufacturer Pagewww.arm.comwww.arm.com
ArchitectureMidgard 2nd Gen
FeaturesOpenCL 1.1, Renderscript, 32-2456kB L2 configureable, 1 - 4 cores

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
9931 Points (1%)
3DMark - 3DMark Ice Storm Extreme Graphics
4427 Points (1%)
3DMark - 3DMark Ice Storm Graphics
9514 Points (1%)
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
3.6 fps (0%)
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 + ARM Mali-T604 MP4
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
12.4 fps (0%)
GFXBench T-Rex HD Offscreen C24Z16 + ARM Mali-T624
14.2 fps (0%)
AnTuTu 3DRating - Antutu 3DRating Off-screen
2881 Points (100%)
AnTuTu 3DRating - Antutu 3DRating Score
3764 Points (33%)
AnTuTu v3 - AnTuTu v3 GPU
5303 Points (55%)
Basemark ES 2.0 - Basemark ES 2.0
26 fps (43%)
59.3 fps (98%)
Basemark X 1.1 - Basemark X 1.1 High Quality
4944 Points (11%)
Basemark X 1.1 - Basemark X 1.1 Medium Quality
12170 Points (27%)
NenaMark2 - NenaMark2 Score
55.2 fps (82%)
59.1 fps (88%)
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 2D Graphics Tests
3692 Points (1%)
PassMark PerformanceTest Mobile V1 - PerformanceTest Mobile V1 3D Graphics Tests
1067 Points (2%)
Smartbench 2012 - Smartbench 2012 Gaming Index
2577 Points (56%)
4428 Points (96%)

Average Benchmarks ARM Mali-T604 MP4 → 100% n=4

Average Benchmarks ARM Mali-T624 → 155% n=4

- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
