The Intel Core i5-13500T is a fast and very economical desktop processor based on the Raptor Lake architecture, which was introduced in October 2022. The processor offers a base clock of 1.6 GHz and reaches up to 4.6 GHz in Turbo. The hybrid CPU architecture, which was introduced with Alder Lake, also benefits the Raptor Lake processors. The suffix T stands for a particularly economical CPU model, and with a TDP of just 35 watts (PL1 = 35 watts), these processors are ideally suited for small, compact systems.
Performance
The low power consumption ultimately results in slightly lower performance compared to the Intel Core i5-13500. Depending on how the PL2 (92 watts) is defined, there may be noticeable differences in multi-core performance. Compared to the Intel Core i5-12500T, the Intel Core i5-13500T is superior due to the higher number of physical computing units.
Graphics unit
Like the Intel Core i5-12500T, the Intel Core i5-13500T offers an integrated graphics unit. The Intel Iris Xe architecture continues to serve as the basis. In terms of performance, however, not much has changed with the new Intel UHD Graphics 770. The iGPU of the Intel Core i5-13500T also clocks 100 MHz higher, but this does not make a noticeable difference in everyday use.
Power consumption
The TDP of the Intel Core i5-13500T is 35 watts, with the option to increase this to up to 92 watts in Turbo mode. Compared to the Intel Core i5-12500T (PL2 = 74 watts), the maximum possible energy requirement increases slightly.
The Intel Core i5-13600K is a fast mid-range desktop processor of the Raptor Lake series. It includes a hybrid architecture for the CPU cores with combined 14 cores. Six fast Raptor Cove performance cores (P-cores) with HyperThreading and a clock speed of 3.5 - 5.1 GHz and eight Gracemont efficiency cores without HyperThreading and a clock speed of 2.6 - 3.9 GHz.
Thanks to the faster P-cores and more E-cores, the i5-13600K is significantly faster than the old i5-12600K (especially in multi-threaded workloads.
The 13600K is rated at 125 Watt TDP base power (PL1) and 181 Watt Turbo Power (PL2) and therefore slightly higher than the old Core i5-12600K.

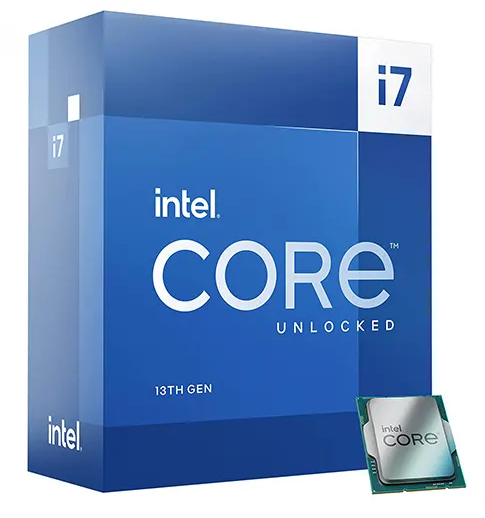

The Intel Core i7-13700K is a high-end CPU based on the current Raptor Lake architecture, which was introduced in September 2022. The base clock is 3.4 GHz and can reach up to 5.4 GHz under optimal conditions. The total of 16 cores are divided into 8 P-cores and 8 E-cores, which we already know from the Alder Lake architecture. Compared to the Intel Core i7-12700K, however, the number of E-cores has been doubled, meaning that the Intel Core i7-13700K now offers 24 threads. As usual, the K models continue to offer a freely selectable multiplier, which simplifies overclocking. In addition, all new Raptor Lake processors can be operated on the existing Socket 1700 motherboards.
Performance
Compared to the Intel Core i7-12700K, the Core i7-13700K still offers 8 P-cores, but these are to be relieved by 8 additional E-cores for demanding applications. The E-cores primarily take care of background applications. The hybrid architecture relies on the Intel Thread Director, which is responsible for the correct allocation of tasks. Compared to Alder Lake, the number of e-cores has been doubled, which significantly improves multi-thread performance in combination with a further increase in IPC. If all requirements are met, Intel Turbo Boost 3.0 can increase the clock rate of the P-cores to up to 5.4 GHz. The E-cores can also be overclocked and reach a maximum of 3.4 GHz.
Graphics
Like the Intel Core i7-12700K, the Intel Core i7-13700K offers an integrated graphics unit (iGPU). The Intel Iris Xe architecture continues to serve as the basis. In terms of performance, however, not much has changed with the new Intel UHD Graphics 770.
Power Consumption
The Intel Core i7-13700K is specified with a TDP of 125 watts, which corresponds to the PL1 value. In Boost mode, the processor's performance can increase to up to 253 watts (PL2). However, this requires good cooling. If all restrictions are deactivated in the BIOS, the PL2 value is not restricted by a Tau value.
Average Benchmarks Intel Core i5-13500T → 100%n=47
Average Benchmarks Intel Core i5-13600K → 165%n=47
Average Benchmarks Intel Core i7-13700K → 187%n=47
- Range of benchmark values for this graphics card - Average benchmark values for this graphics card * Smaller numbers mean a higher performance 1 This benchmark is not used for the average calculation
