AMD Radeon RX Vega Mobile vs AMD Radeon RX Vega 11 vs AMD Radeon RX Vega M GL / 870
AMD Radeon RX Vega Mobile
► remove from comparison
The AMD Radeon Vega Mobile is a dedicated graphics card for laptops. It most likely uses the same chip as the Kaby-Lake-G graphics part. Rumors currently speak of 28 CUs (= 1792 shaders) instead of the 24 CUs in the Kaby-Lake-G top model. The clock speed should be also around 1 GHz. As graphics memory, the GPU most likely also uses 4 GB HMB2.
The Vega architecture offers some improvements over the Polaris generation and now supports DirectX 12 Feature Level 12_1. More information is available in our dedicated article about the Raven Ridge architecture.
The power consumption should be similar to the Kaby-Lake-G chips (altough this may be more efficient due to power sharing and distribution). The Kaby-Lake-G is rated at 100 Watt including a 35-45 Watt processor.
The Radeon Vega Mobile was announced one day before CES at a press event by Lisa Su.
AMD Radeon RX Vega 11
► remove from comparison
The AMD Radeon RX Vega 11 is an integrated GPU in the Ryzen desktop APUs (e.g. Ryzen 5 2400G) that were launched early 2018. The graphics card is based on the Vega architecture (5th generation GCN) and has all 11 CUs (=704 shaders) clocked at up to 1240 MHz (Ryzen 5 2400G). The GPU benefits from fast dual-channel DDR4-2400 RAM (contrary to DDR4-2133 single-channel, which is also possible).
The Vega architecture offers some improvements over the Polaris generation and now supports DirectX 12 Feature Level 12_1. More information is available in our dedicated article about the Raven Ridge architecture.
According to a first 3DMark Fire Strike that was published by AMD, the Vega 11 offers a similiar theoretical performance as the older dedicated Radeon R9 M280X. In games the missing dedicated graphics memory may however prove to be a bottleneck. Therefore, modern and demanding games will only be playable in lowest settings and the APU is mostly intended for lower demanding games like Overwatch, Dota 2, ...
Thanks to the 14nm process and clever power-saving features, the power consumption is comparatively low. The high TDP of 65 Watt of the APU however should lead to a much higher power consumption compared to the mobile APUs with 15 Watt TDP.
AMD Radeon RX Vega M GL / 870
► remove from comparison

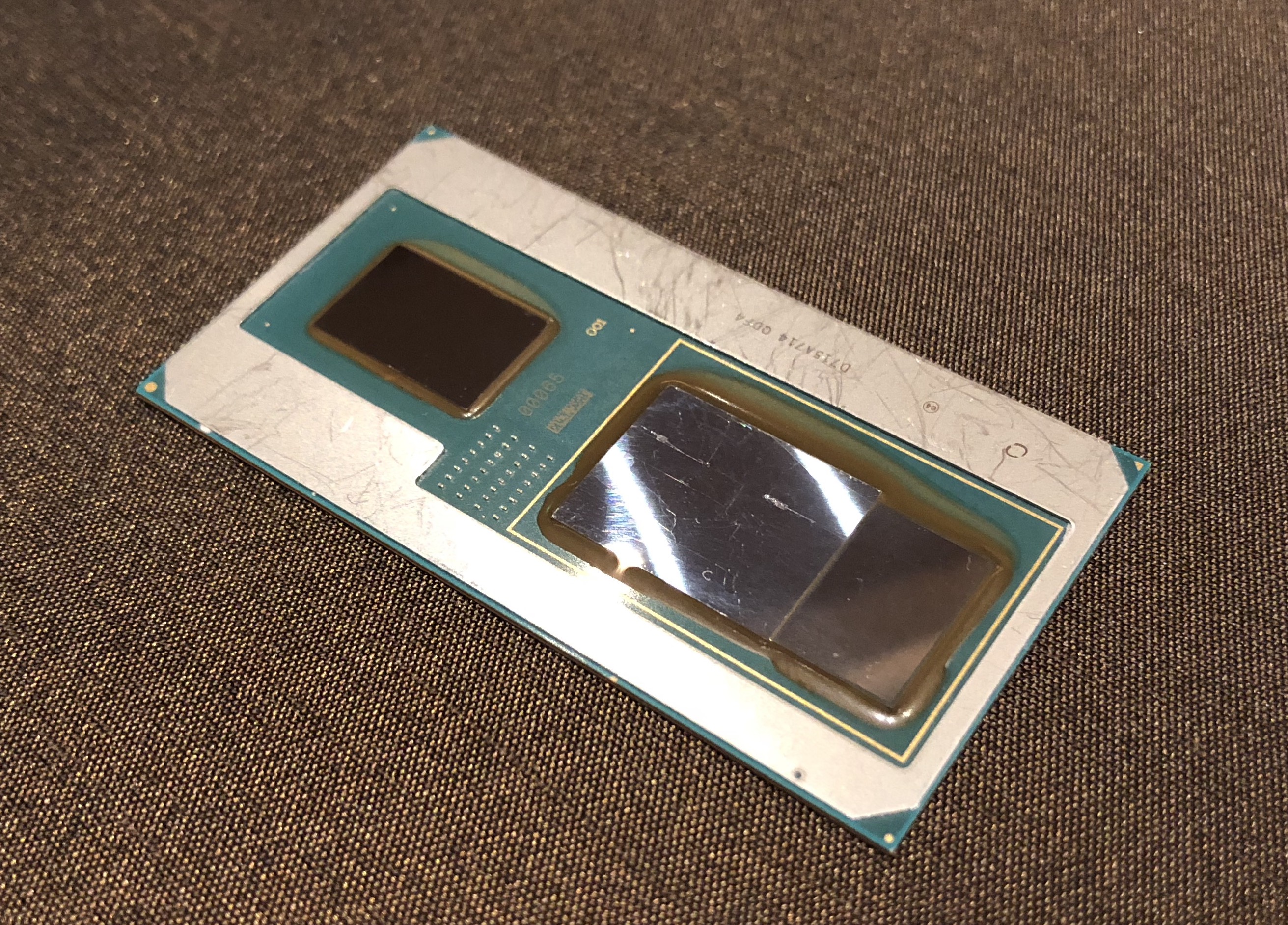

The AMD Radeon RX Vega M GL or Radeon RX Vega 870 (according to Dell) is an integrated GPU in the slower Intel Kaby-Lake-G SoC. It combines a Kaby-Lake processor, a Vega graphics card and 4 GB HBM2 memory on a single package. The graphics card offers 20 CUs (1280 shaders) and is clocked from 931 - 1011 MHz.
Currently it looks like the GPU is a mixture of Polaris (Shaders?) and Vega (HBM memory controller at least). E.g. the graphics card is called Polaris 22 internally. Detailed information on the Vega architecture can be found in our dedicated article about the Raven Ridge architecture.
The performance of the Vega M GL should be between the Nvidia GeForce GTX 1050 and 1050 Ti according to benchmarks from Intel. Therefore, it should be well suited for 1080p and high resolution gaming.
The power consumption should be quite similar to a dedicated Vega Mobile GPU, but due to the small form factor, smaller laptops can be built with the Kaby-Lake-G SoC. The TDP is specified at 65 Watt for the whole package including GPU, CPU and HBM2 memory.
AMD Radeon RX Vega Mobile | AMD Radeon RX Vega 11 | AMD Radeon RX Vega M GL / 870 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AMD Radeon RX Vega Series |
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Codename | Vega Mobile | Vega Raven Ridge | Vega Kaby Lake-G | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Architecture | Vega | Vega | Vega | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pipelines | 1792 - unified | 704 - unified | 1280 - unified | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory Bus Width | 2048 Bit | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory Type | HBM2 | HBM2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Amount of Memory | 4 GB | 4 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shared Memory | no | no | no | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
API | DirectX 12_1 | DirectX 12_1 | DirectX 12_1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 90 Watt | 65 Watt | 65 Watt | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
technology | 14 nm | 14 nm | 14 nm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Notebook Size | medium sized | medium sized | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Date of Announcement | 07.01.2018 | 26.10.2017 | 07.01.2018 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core Speed | 1240 (Boost) MHz | 931 - 1011 (Boost) MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transistors | 4.5 Billion | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Features | Tiled Rasterization, Shared Memory (up to Dual-Channel DDR4-2400) | Tiled Rasterization, Shared Memory (up to Dual-Channel DDR4-2400) |
|
|
Benchmarks
specvp12 sw-03 + AMD Radeon RX Vega M GL / 870
Cinebench R15 OpenGL 64 Bit + AMD Radeon RX Vega 11
GFXBench T-Rex HD Offscreen C24Z16 + AMD Radeon RX Vega M GL / 870
Average Benchmarks AMD Radeon RX Vega 11 → 0% n=0
Average Benchmarks AMD Radeon RX Vega M GL / 870 → 0% n=0

* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Gears Tactics
2020
Doom Eternal
2020
Hunt Showdown
2020
Escape from Tarkov
2020
Need for Speed Heat
2019
GRID 2019
2019
FIFA 20
2019
Borderlands 3
2019
Control
2019
F1 2019
2019
Rage 2
2019
Anno 1800
2019
The Division 2
2019
Dirt Rally 2.0
2019
Anthem
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Apex Legends
2019
Just Cause 4
2018
Darksiders III
2018
Battlefield V
2018
Farming Simulator 19
2018
Fallout 76
2018
Forza Horizon 4
2018
FIFA 19
2018
F1 2018
2018
Monster Hunter World
2018
The Crew 2
2018
Far Cry 5
2018
X-Plane 11.11
2018
Fortnite
2018
Destiny 2
2017
F1 2017
2017
Team Fortress 2
2017
Dirt 4
2017
Rocket League
2017
Prey
2017
Mafia 3
2016
Overwatch
2016
Rainbow Six Siege
2015
Fallout 4
2015
World of Warships
2015
Metal Gear Solid V
2015
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015
Thief
2014
X-Plane 10.25
2013
Metro: Last Light
2013
BioShock Infinite
2013AMD Radeon RX Vega Mobile | AMD Radeon RX Vega 11 | AMD Radeon RX Vega M GL / 870 | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | ||||
Gears Tactics | 172.7 | 57.7 | 39.4 | 27.4 | 18.4 | 8.8 | |||||||||||||||
Doom Eternal | 83.4 | 46.7 | 27 | ||||||||||||||||||
Hunt Showdown | 90.6 | 35.3 | 29.5 | 18.9 | |||||||||||||||||
Escape from Tarkov | 97.9 | 45.2 | 34.3 | 29.8 | 20.8 | 9.5 | |||||||||||||||
Red Dead Redemption 2 | 69.1 | 34.9 | 20.6 | 12.1 | |||||||||||||||||
Star Wars Jedi Fallen Order | 47.7 | 39.3 | 32 | 20.8 | 9.9 | ||||||||||||||||
Need for Speed Heat | 64.9 | 43.7 | 36.7 | 30.5 | 22.1 | 11.5 | |||||||||||||||
Call of Duty Modern Warfare 2019 | 72.1 | 44.4 | 37.8 | 33.5 | 21.1 | 11.8 | |||||||||||||||
GRID 2019 | 120.5 | 50.5 | 42 | 26.8 | 14.7 | 9.2 | |||||||||||||||
Ghost Recon Breakpoint | 55 | 33 | 30 | 20 | 12 | 4 | |||||||||||||||
FIFA 20 | 98.9 | 76.9 | 49.7 | ||||||||||||||||||
Borderlands 3 | 47 | 18 | 11 | 8 | 87.5 | 39.3 | 24.2 | 18.5 | 12.6 | 5.4 | |||||||||||
Control | 41.2 | 12.5 | 7.1 | 87.6 | 27.5 | 19.8 | 12.6 | 5.9 | |||||||||||||
F1 2019 | 84 | 43 | 30 | 105 | 65 | 56 | 38 | 16 | |||||||||||||
Total War: Three Kingdoms | 122.5 | 37.8 | 23.7 | 16.7 | 9.5 | 3.6 | |||||||||||||||
Rage 2 | 37.5 | 31.9 | 31.1 | 52.8 | 27.7 | 4.4 | |||||||||||||||
Anno 1800 | 58.5 | 21.3 | 12.9 | 84 | 41.3 | 23.7 | 12.1 | 8 | 4.2 | ||||||||||||
The Division 2 | 62 | 33 | 17 | 88 | 46 | 34 | 24 | 15 | 7 | ||||||||||||
Dirt Rally 2.0 | 121.1 | 44.3 | 35.8 | 18.5 | 179.6 | 70.7 | 54.4 | 30.1 | 21.2 | 11.3 | |||||||||||
Anthem | 55.6 | 40.6 | 37.4 | 26.4 | 19.8 | 9.9 | |||||||||||||||
Far Cry New Dawn | 34 | 18 | 16 | 16 | 74 | 44 | 41 | 38 | 27 | 13 | |||||||||||
Metro Exodus | 26 | 11.3 | 8.27 | 6.97 | 72.7 | 32.8 | 21.6 | 18 | 13.9 | ||||||||||||
Apex Legends | 64.6 | 32.6 | 23.8 | 124.2 | 53 | 41.4 | 39.7 | 26.8 | 14.8 | ||||||||||||
Battlefield V | 67 | 31 | 26 | 25 | 8 | 118.2 | 61.6 | 51.6 | 47.7 | 34.2 | 16.4 | ||||||||||
Farming Simulator 19 | 125.8 | 64.2 | 36.6 | 15.7 | 160.3 | 115.9 | 68.4 | 37.1 | 25.5 | 12.2 | |||||||||||
Assassin´s Creed Odyssey | 37 | 20 | 16 | 11 | 5 | 60 | 47 | 39 | 23 | 17 | 11 | ||||||||||
Shadow of the Tomb Raider | 49 | 19 | 17 | 14 | 4 | 72 | 41 | 36 | 30 | 19 | 9 | ||||||||||
Far Cry 5 | 41 | 19 | 18 | 17 | 78 | 42 | 39 | 36 | 24 | 12 | |||||||||||
World of Tanks enCore | 318.5 | 130.6 | 50.8 | 32.2 | 15.4 | ||||||||||||||||
X-Plane 11.11 | 42 | 32 | 30 | 17 | 50.4 | 42.2 | 36.9 | 23.6 | |||||||||||||
Final Fantasy XV Benchmark | 29 | 15 | 7.74 | 5.75 | 3.33 | 33 | 31.3 | 20.7 | 8.2 | ||||||||||||
Fortnite | 183 | 86 | 30.8 | 126.9 | 86.2 | 55.7 | 37.9 | 24.2 | 8.8 | ||||||||||||
F1 2017 | 101 | 45 | 35 | 80 | 65 | 39 | |||||||||||||||
Dirt 4 | 40.9 | 16.3 | 9.7 | ||||||||||||||||||
Rocket League | 180 | 64 | 44 | 15.2 | 248.2 | 159.8 | 99.1 | 61.6 | 29.6 | ||||||||||||
Prey | 135 | 86.6 | 69.1 | 61 | |||||||||||||||||
Mafia 3 | 45 | 34 | 24 | ||||||||||||||||||
Overwatch | 139 | 96 | 54.2 | 28.3 | 184.3 | 108.2 | 50 | ||||||||||||||
Ashes of the Singularity | 56 | 37 | 33 | ||||||||||||||||||
Rise of the Tomb Raider | 132 | 80 | 39 | 30 | 13 | ||||||||||||||||
Rainbow Six Siege | 180.9 | 149.4 | 97 | 80.5 | 30.8 | ||||||||||||||||
Fallout 4 | 86.1 | 45.2 | 36 | ||||||||||||||||||
Metal Gear Solid V | 60 | 60 | 60 | 54 | |||||||||||||||||
Batman: Arkham Knight | 112 | 100 | 54 | 16 | |||||||||||||||||
The Witcher 3 | 41.8 | 13.8 | 9.55 | 116.6 | 78 | 42 | 23 | 14 | |||||||||||||
GTA V | 85 | 63.7 | 23 | 11 | 138.7 | 130.8 | 58.1 | 24 | 28.8 | ||||||||||||
Thief | 78.8 | 72.6 | 41.1 | ||||||||||||||||||
Metro: Last Light | 105.8 | 80.9 | 40.8 | ||||||||||||||||||
BioShock Infinite | 215 | 177 | 157 | 55 | |||||||||||||||||
AMD Radeon RX Vega Mobile | AMD Radeon RX Vega 11 | AMD Radeon RX Vega M GL / 870 | |||||||||||||||||||
low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | | | | | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 10 6 5 | 9 8 5 | 14 9 | 12 | 1 | 6 | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 8 20 14 | 3 25 14 6 | 12 25 9 1 | 14 21 3 | 23 2 2 | 31 2 |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
