AMD Radeon RX 7600M vs AMD Radeon RX 7600M XT
AMD Radeon RX 7600M
► remove from comparison
The AMD Radeon RX 7600M is a mobile upper mid-range graphics card based on the Navi 33 chip (RDNA 3 architecture) manufactured in 6nm. It features 1,792 cores (28 CUs - compute units) and 8 GB of fast GDDR6 graphics memory connected with a 128 Bit memory bus. The chip also includes 32 MB Infinity Cache. The clock speed of the cores will depend on the laptop according to AMD. The specified game clock speed is 2070 MHz (most likely at 90 W TGP).
The performance should be similar to the old Radeon RX 6650M XT (28 CUs RDNA 2, higher clock speed) and therefore best suited for 1080p gaming. Although the Raytracing performance did increase for RDNA 3, the GeForce GPUs are still faster in this regard.
The Navi 33 chip is manufactured at TSMC in the current 6nm process (versus 4nm of Nvidia RTX 4000 series). The power consumption (TGP) is specified at 50 to 90 Watt.
AMD Radeon RX 7600M XT
► remove from comparison
The AMD Radeon RX 7600M XT is a mobile upper mid-range graphics card based on the Navi 33 chip (RDNA 3 architecture) manufactured in 6nm. It features 2,048 cores (32 CUs - compute units) and 8 GB of fast GDDR6 graphics memory connected with a 128 Bit memory bus. The chip also includes 32 MB Infinity Cache. The clock speed of the cores will depend on the laptop according to AMD. The specified game clock speed is 2300 MHz (most likely at 120 W TGP).

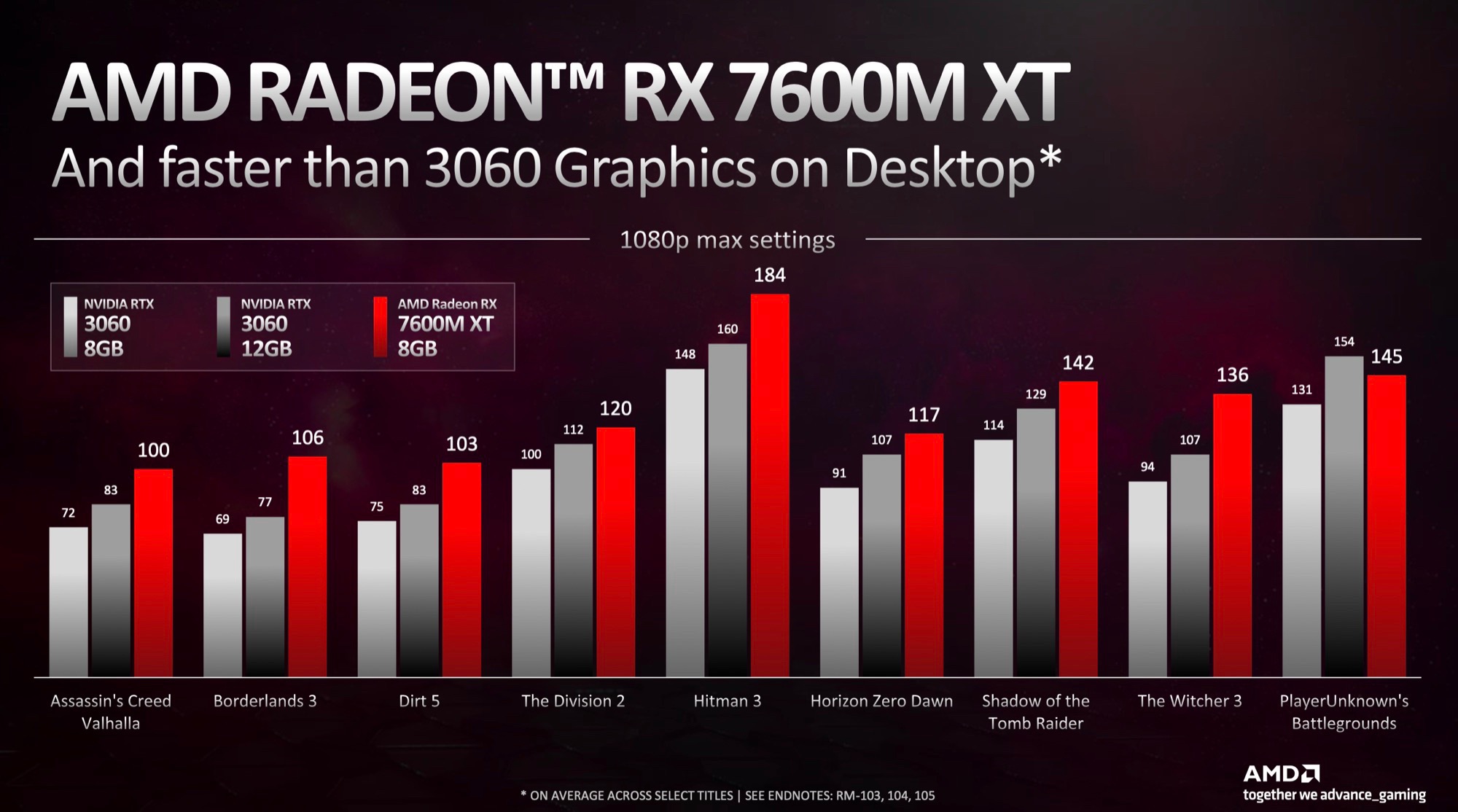

AMD compares the performance to the RTX 3060 desktop GPU and claims significantly faster frame rates in a couple of games (without Raytracing). Although the Raytracing performance did increase for RDNA 3, the GeForce GPUs are still faster in this regard.
The Navi 33 chip is manufactured at TSMC in the current 6nm process (versus 4nm of Nvidia RTX 4000 series). The power consumption (TGP) is specified at 75 to 120 Watt.
AMD Radeon RX 7600M | AMD Radeon RX 7600M XT | |||||||||||||||||||||||||||||||
Radeon RX 7000M Series |
|
| ||||||||||||||||||||||||||||||
Codename | Navi 33 | Navi 33 | ||||||||||||||||||||||||||||||
Architecture | RDNA 3 | RDNA 3 | ||||||||||||||||||||||||||||||
Pipelines | 1792 - unified | 2048 - unified | ||||||||||||||||||||||||||||||
ROPs | 64 | 64 | ||||||||||||||||||||||||||||||
Core Speed | 2070 (Boost) MHz | 2300 (Boost) MHz | ||||||||||||||||||||||||||||||
Theoretical Performance | 34.5 TFLOPS FP16, 17.3 TFLOPS FP32 | 42.8 TFLOPS FP16, 21.4 TFLOPS FP32 | ||||||||||||||||||||||||||||||
Cache | L3: 32 MB | L3: 32 MB | ||||||||||||||||||||||||||||||
Memory Speed | 16000 MHz | 18000 MHz | ||||||||||||||||||||||||||||||
Memory Bus Width | 128 Bit | 128 Bit | ||||||||||||||||||||||||||||||
Memory Type | GDDR6 | GDDR6 | ||||||||||||||||||||||||||||||
Max. Amount of Memory | 8 GB | 8 GB | ||||||||||||||||||||||||||||||
Shared Memory | no | no | ||||||||||||||||||||||||||||||
Memory Bandwidth | 256 GB/s | 288 GB/s | ||||||||||||||||||||||||||||||
API | DirectX 12, Shader 6.4, OpenGL 4.6 | DirectX 12, Shader 6.4, OpenGL 4.6 | ||||||||||||||||||||||||||||||
Power Consumption | 90 Watt (50 - 90 Watt TGP) | 120 Watt (75 - 120 Watt TGP) | ||||||||||||||||||||||||||||||
Transistors | 13.3 Billion | 13.3 Billion | ||||||||||||||||||||||||||||||
Die Size | 204 mm² | 204 mm² | ||||||||||||||||||||||||||||||
technology | 6 nm | 6 nm | ||||||||||||||||||||||||||||||
Notebook Size | large | large | ||||||||||||||||||||||||||||||
Date of Announcement | 05.01.2023 | 05.01.2023 | ||||||||||||||||||||||||||||||
Link to Manufacturer Page | www.amd.com | www.amd.com |
Benchmarks
3DM Vant. Perf. total + AMD Radeon RX 7600M
specvp12 sw-03 + AMD Radeon RX 7600M XT
Cinebench R15 OpenGL 64 Bit + AMD Radeon RX 7600M
Average Benchmarks AMD Radeon RX 7600M → 100% n=22
Average Benchmarks AMD Radeon RX 7600M XT → 125% n=22

* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

God of War Ragnarök
2024
Final Fantasy XVI
2024
Space Marine 2
2024
Star Wars Outlaws
2024
Black Myth: Wukong
2024
Once Human
2024
The First Descendant
2024
F1 24
2024
Ghost of Tsushima
2024
Dragon's Dogma 2
2024
Alone in the Dark
2024
Last Epoch
2024
Skull & Bones
2024
Helldivers 2
2024
Enshrouded
2024
Palworld
2024
Ready or Not
2023
The Finals
2023
EA Sports WRC
2023
Alan Wake 2
2023
Lords of the Fallen
2023
Total War Pharaoh
2023
EA Sports FC 24
2023
Counter-Strike 2
2023
Baldur's Gate 3
2023
Lies of P
2023
The Crew Motorfest
2023
Starfield
2023
Armored Core 6
2023
Immortals of Aveum
2023
Atlas Fallen
2023
F1 23
2023
Diablo 4
2023
Dead Island 2
2023
The Last of Us
2023
Company of Heroes 3
2023
Sons of the Forest
2023
Atomic Heart
2023
Returnal
2023
Hogwarts Legacy
2023
Dead Space Remake
2023
The Witcher 3 v4.00
2023
High On Life
2023
The Quarry
2022
F1 22
2022
Ghostwire Tokyo
2022
Cyberpunk 2077 1.6
2022
GRID Legends
2022
God of War
2022
Farming Simulator 22
2021
Forza Horizon 5
2021
Far Cry 6
2021
F1 2021
2021
Dirt 5
2020
Watch Dogs Legion
2020
Horizon Zero Dawn
2020
Death Stranding
2020
F1 2020
2020
Borderlands 3
2019
Control
2019
Anno 1800
2019
The Division 2
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Apex Legends
2019
Forza Horizon 4
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015Average Gaming AMD Radeon RX 7600M → 100%
Average Gaming 30-70 fps → 100%
Average Gaming AMD Radeon RX 7600M XT → 132%
Average Gaming 30-70 fps → 137%
AMD Radeon RX 7600M | AMD Radeon RX 7600M XT | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | |||
Call of Duty Black Ops 6 | 143 | 129 | 82 | 77 | 60 | 35 | ||||||||
God of War Ragnarök | 120.1 | 105.5 | 90.8 | 52.1 | 5.8 | |||||||||
Final Fantasy XVI | 62.1 | 59.9 | 53.3 | 54.4 | 48.7 | 23 | ||||||||
Space Marine 2 | 67.8 | 67.2 | 65.6 | 63.3 | 45.2 | |||||||||
Star Wars Outlaws | 43.5 | 38.8 | 35 | 28.2 | 19.5 | |||||||||
Black Myth: Wukong | 83 | 60 | 46 | 24 | 17 | 6 | ||||||||
Once Human | 181.8 | 121.6 | 99.1 | 88.9 | 55.7 | 25.3 | ||||||||
The First Descendant | 155 | 100 | 89 | 74 | 44 | 21 | ||||||||
F1 24 | 294 | 246 | 138 | 29 | 13 | 11 | ||||||||
Senua's Saga Hellblade 2 | 63.8 | 53.8 | 17.8 | 10.7 | ||||||||||
Ghost of Tsushima | 121.9 | 99.2 | 90.3 | 65.6 | 46.1 | 25.1 | ||||||||
Dragon's Dogma 2 | 49.5 | 34.6 | 19.6 | 78.9 | 72.1 | 50.2 | 26.8 | |||||||
Horizon Forbidden West | 54.8 | 30.9 | 30.2 | 24.1 | 13.7 | 107.3 | 89.6 | 61 | 57 | 46 | 26.6 | |||
Alone in the Dark | 196.9 | 167 | 84.2 | 50.3 | 8.2 | |||||||||
Last Epoch | 121.2 | 110.6 | 82.7 | 51.5 | 22.6 | 228 | 180.2 | 154.8 | 118 | 71.3 | 32.7 | |||
Skull & Bones | 83 | 66 | 47 | 37 | 21 | 139 | 125 | 96 | 70 | 52 | 28 | |||
Helldivers 2 | 52.5 | 45.5 | 44.9 | 32.4 | 17.8 | 143.5 | 111 | 97 | 94.7 | 45.3 | 22.7 | |||
Enshrouded | 49.9 | 41.5 | 34.4 | 25.3 | 13.3 | 66.1 | 46.1 | 26.7 | 15.2 | 14 | ||||
Palworld | 83.8 | 64.1 | 59 | 39.4 | 20.8 | 174 | 151.9 | 94.2 | 82.7 | 57.9 | 30.8 | |||
Prince of Persia The Lost Crown | 351 | 339 | 329 | 223 | 112.2 | 356 | 358 | 358 | 350 | 170.8 | ||||
Ready or Not | 162.6 | 127.4 | 89.3 | 53.2 | 22.9 | 172.9 | 155.3 | 150.4 | 100.2 | 76.7 | 33.3 | |||
The Finals | 121.4 | 107.5 | 83.5 | 50.3 | 24 | 293 | 216 | 169 | 129 | 77 | 36.6 | |||
Avatar Frontiers of Pandora | 49 | 42 | 28 | 18 | 8 | 60 | 55 | 42 | 32 | 22 | 10 | |||
Call of Duty Modern Warfare 3 2023 | 111 | 83 | 76 | 48 | 27 | 183 | 163 | 113 | 103 | 71 | 43 | |||
EA Sports WRC | 146 | 98 | 88 | 79 | 57 | 31 | ||||||||
Alan Wake 2 | 48.1 | 39.9 | 22.5 | 12.3 | 76 | 66 | 60 | 35 | 15 | |||||
Lords of the Fallen | 55.7 | 46.3 | 33 | 21.9 | 11.4 | 89 | 79 | 61 | 45 | 30 | 13 | |||
Total War Pharaoh | 145 | 90.5 | 72.9 | 49 | 24.4 | 331 | 210 | 129 | 102 | 70 | 35 | |||
Assassin's Creed Mirage | 86 | 80 | 60 | 44 | 27 | 123 | 111 | 98 | 67 | 51 | 28 | |||
EA Sports FC 24 | 202 | 172.2 | 142.7 | 128.3 | 105.3 | 68.7 | ||||||||
Counter-Strike 2 | 164 | 128 | 98.4 | 61.6 | 30.4 | 331 | 317 | 199 | 130 | 84 | 41 | |||
Cyberpunk 2077 2.2 Phantom Liberty | 73.8 | 62.3 | 57.1 | 36.6 | 17.2 | 117 | 94 | 80 | 72 | 43 | 19 | |||
Baldur's Gate 3 | 83.1 | 71 | 68.9 | 47.2 | 22.9 | 133 | 106 | 91 | 88 | 61 | 31 | |||
Lies of P | 101.1 | 89.4 | 80.4 | 54.5 | 27 | 167 | 143 | 125 | 113 | 78 | 39 | |||
Starfield | 75 | 67 | 55 | 50 | 41 | 26 | ||||||||
Armored Core 6 | 84.1 | 78.6 | 63.9 | 52.9 | 31.1 | 116 | 99 | 92 | 71 | 70 | 36 | |||
Immortals of Aveum | 77 | 67 | 51 | 30 | 11 | |||||||||
Atlas Fallen | 94.4 | 86.3 | 70.4 | 48.6 | 26.5 | 145 | 138 | 125 | 101 | 70 | 24 | |||
Ratchet & Clank Rift Apart | 46.2 | 35.5 | 30.7 | 24.6 | 15.4 | 44 | 36 | 25 | 22 | 18 | 12 | |||
F1 23 | 232 | 152 | 31 | 19 | 7 | 221 | 206 | 158 | 32 | 15 | 6 | |||
Diablo 4 | 229 | 228 | 185 | 152 | 92 | 48 | ||||||||
Star Wars Jedi Survivor | 83 | 73 | 69 | 64 | 39 | 18 | ||||||||
Dead Island 2 | 260 | 224 | 168 | 119 | 82 | 41 | ||||||||
The Last of Us | 93 | 76 | 63 | 46 | 31 | 7 | ||||||||
Resident Evil 4 Remake | 66.3 | 59.8 | 42.5 | 29.4 | 15.5 | 145 | 109 | 93 | 60 | 46 | 15 | |||
Company of Heroes 3 | 114 | 91.3 | 90.1 | 62.9 | 35.8 | 173 | 152 | 116 | 114 | 84 | 49 | |||
Sons of the Forest | 65.1 | 61.6 | 61.3 | 45.5 | 26.1 | 106 | 99 | 93 | 92 | 69 | 37 | |||
Atomic Heart | 95 | 58.3 | 44.4 | 33.3 | 20 | 186 | 140 | 85 | 64 | 49 | 28 | |||
Returnal | 72 | 65 | 55 | 39 | 21 | 107 | 100 | 90 | 76 | 56 | 30 | |||
Hogwarts Legacy | 76.1 | 58.4 | 46.9 | 29.8 | 17.7 | 146 | 111 | 85 | 65 | 43 | 23 | |||
Dead Space Remake | 80 | 71 | 65 | 70 | 43 | 13 | ||||||||
The Witcher 3 v4.00 | 216 | 184 | 131 | 106 | 71 | 38 | ||||||||
High On Life | 278 | 168 | 156 | 105 | 60 | 22 | ||||||||
The Callisto Protocol | 185 | 134 | 119 | 78 | 59 | 34 | ||||||||
Need for Speed Unbound | 141 | 122 | 93 | 79 | 57 | 26 | ||||||||
Spider-Man Miles Morales | 114.7 | 101.1 | 94.4 | 84.3 | 36.3 | 20.7 | ||||||||
Uncharted Legacy of Thieves Collection | 77 | 74 | 68 | 65 | 42 | 11 | ||||||||
A Plague Tale Requiem | 110 | 83 | 61 | 46 | 30 | 18.4 | ||||||||
The Quarry | 155 | 115 | 94 | 70 | 41 | 14 | ||||||||
F1 22 | 221 | 203 | 158 | 45 | 28 | 10 | ||||||||
Ghostwire Tokyo | 174 | 159 | 157 | 156 | 93 | 43 | ||||||||
Tiny Tina's Wonderlands | 210 | 163 | 105 | 83 | 57 | 20 | ||||||||
Cyberpunk 2077 1.6 | 115.9 | 95.6 | 81 | 74.3 | 47.6 | 21.7 | ||||||||
GRID Legends | 163 | 137 | 116 | 102 | 88 | 57 | ||||||||
God of War | 125 | 112 | 93 | 67 | 53 | 34 | ||||||||
Farming Simulator 22 | 356 | 244 | 196 | 172 | 136 | 85 | ||||||||
Forza Horizon 5 | 243 | 194 | 180 | 72 | 57 | 35 | ||||||||
Guardians of the Galaxy | 167 | 142 | 135 | 104 | 87 | 62 | ||||||||
Far Cry 6 | 156 | 134 | 119 | 94 | 66 | 4 | ||||||||
F1 2021 | 357 | 270 | 199 | 90 | 65 | 27 | ||||||||
Assassin´s Creed Valhalla | 222 | 139 | 114 | 92 | 67 | 30 | ||||||||
Dirt 5 | 102 | 81 | 63 | 53 | 53 | 52 | ||||||||
Watch Dogs Legion | 147 | 142 | 128 | 60 | 41 | 22 | ||||||||
Horizon Zero Dawn | 185 | 140 | 122 | 106 | 81 | 44 | ||||||||
Death Stranding | 195 | 141 | 136 | 134 | 99 | 54 | ||||||||
F1 2020 | 342 | 219 | 179 | 123 | 95 | 56 | ||||||||
Borderlands 3 | 149 | 120 | 97 | 81 | 59 | 31 | ||||||||
Control | 238 | 122 | 90 | 58 | 29 | |||||||||
Total War: Three Kingdoms | 352 | 203 | 127 | 87 | 52 | 24 | ||||||||
Anno 1800 | 137 | 128 | 110 | 54 | 48 | 34 | ||||||||
The Division 2 | 194 | 184 | 144 | 103 | 67 | 29 | ||||||||
Far Cry New Dawn | 127 | 107 | 103 | 92 | 85 | 55 | ||||||||
Metro Exodus | 215 | 105 | 84 | 67 | 52 | 31 | ||||||||
Apex Legends | 144 | 144 | 143.9 | 139.6 | 124.4 | 98.8 | ||||||||
Assassin´s Creed Odyssey | 142 | 131 | 119 | 85 | 62 | 32 | ||||||||
Forza Horizon 4 | 290 | 245 | 237 | 180 | 142 | 90 | ||||||||
Shadow of the Tomb Raider | 222 | 146 | 137 | 117 | 76 | 33 | ||||||||
Strange Brigade | 218 | 185 | 157.2 | 420 | 223 | 188 | 164 | 118 | 60 | |||||
Far Cry 5 | 112 | 110 | 103 | 145 | 127 | 124 | 115 | 95 | 51 | |||||
X-Plane 11.11 | 93.2 | 76 | 62.1 | 107 | 83 | 64 | 46 | |||||||
Final Fantasy XV Benchmark | 102.3 | 70.3 | 217 | 132 | 90 | 66 | 36 | |||||||
Assassin´s Creed Origins | 136 | 97 | 93 | 78 | 62 | 39 | ||||||||
Rise of the Tomb Raider | 280 | 199.4 | 128.1 | 108.3 | 49.3 | |||||||||
Dota 2 Reborn | 149.4 | 139.6 | 125.7 | 113 | 173 | 142 | 133 | 113 | 83 | |||||
The Witcher 3 | 232 | 138 | 94 | 384 | 283 | 168 | 101 | 75 | 52 | |||||
GTA V | 168.5 | 145.2 | 77.7 | 174 | 169 | 157 | 89 | 68 | 71 | |||||
AMD Radeon RX 7600M | AMD Radeon RX 7600M XT | |||||||||||||
low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 1 | 7 18 11 | 11 18 8 | 1 13 17 2 | 9 18 2 1 | 26 3 1 | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 25 68 | 6 33 54 | 3 5 51 37 | 5 13 60 12 | 10 42 37 4 | 42 40 8 1 |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
