AMD Radeon R4 (Stoney Ridge) vs AMD Radeon R5 (Stoney Ridge)
AMD Radeon R4 (Stoney Ridge)
► remove from comparison
The AMD Radeon R4 (Stoney Ridge) is an integrated graphics adapter of the weaker mobile dual-core Stoney Ridge APUs. At its launch, it is being used in the AMD A6-9210 and probably has 192 shaders running at up to 600 MHz. The performance can vary heavily depending on the configured TDP and the system memory.
Architecture and Features

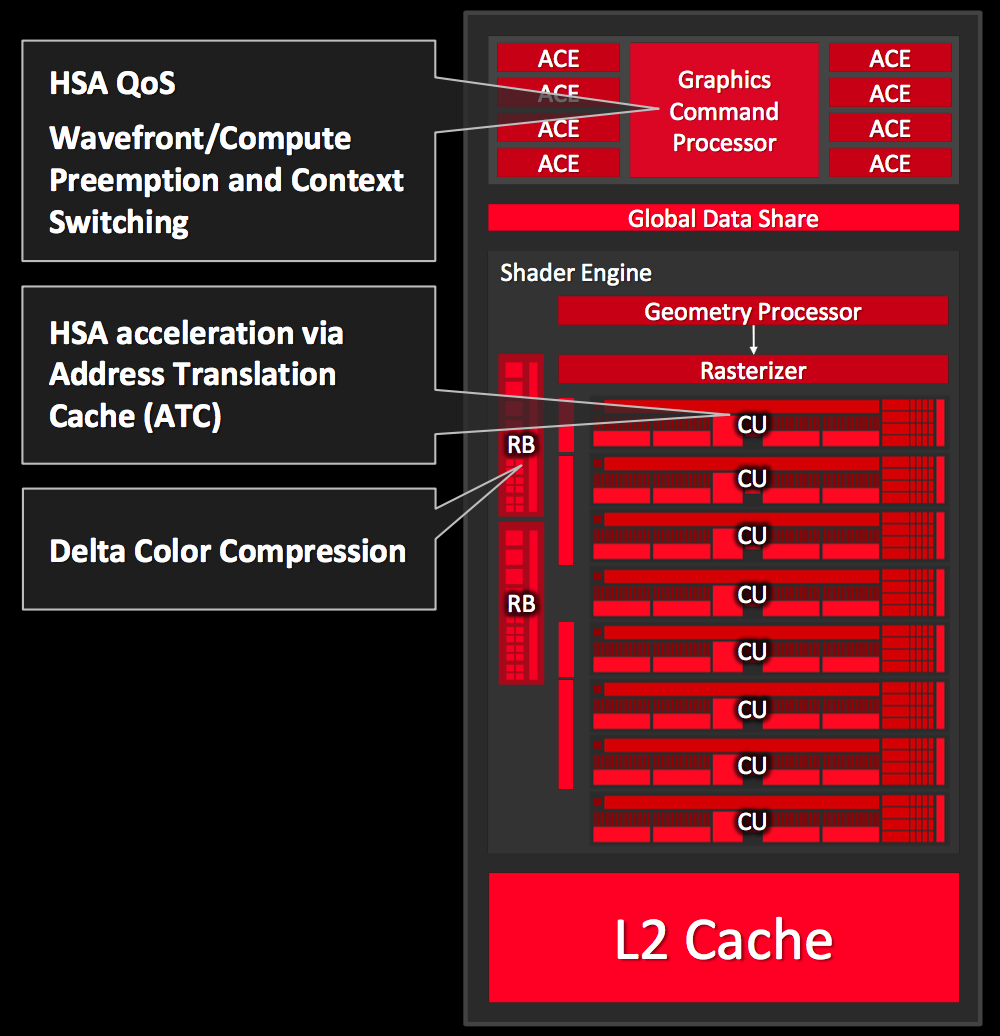

The Radeon R5 is equipped with three cores from the third GCN generation (often called GCN 1.2 or 2.0 by the press). This means it is very similar to the Tonga desktop chip and supports DirectX 12 (FL 12_0), but the graphics cores can also be accessed via Mantle, OpenGL, and OpenCL. The GPU supports the HSA 1.0 standard as well and can therefore use the connection with the CPU cores very efficiently. The technical specifications are identical to the Carrizo predecessor.
The video unit includes the UVD 6 (Unified Video Decoder), which can decode HEVC/H.265 and 4K with support from the hardware. More details are available in our dedicated Stoney Ridge article.
Power Consumption
Depending on the model and configured TDP (cTDP), the 28 nm chip is specified with 10 up to 15 Watts. This means it can also be used for thin and light notebooks.
AMD Radeon R5 (Stoney Ridge)
► remove from comparison
The AMD Radeon R5 (Stoney Ridge) is an integrated graphics adapter of the weaker mobile dual-core Stoney Ridge APUs. At its launch, it is being used in the AMD A9-9410 and has 3 active Compute Cores (384 shaders). Depending on the model, the maximum clock is 800 MHz. The performance can vary heavily depending on the configured TDP and the system memory. Compared to the Radeon R5 from the Bristol Ridge series, it only has 3 instead of 6 GCN cores (and is the full configuration of the Stoney Ridge chip).
Architecture and Features
The Radeon R5 is equipped with three cores from the third GCN generation (often called GCN 1.2 or 2.0 by the press). This means it is very similar to the Tonga desktop chip and supports DirectX 12 (FL 12_0), but the graphics cores can also be accessed via Mantle, OpenGL, and OpenCL. The GPU supports the HSA 1.0 standard as well and can therefore use the connection with the CPU cores very efficiently. The technical specifications are identical to the Carrizo predecessor.
The video unit includes the UVD 6 (Unified Video Decoder), which can decode HEVC/H.265 and 4K with support from the hardware. More details are available in our dedicated Stoney Ridge article.
Power Consumption
Depending on the model and configured TDP (cTDP), the 28 nm chip is specified with 10 up to 25 Watts. This means it can also be used for thin and light notebooks.
| AMD Radeon R4 (Stoney Ridge) | AMD Radeon R5 (Stoney Ridge) | |||||||||||||||||||||||||||||||
| Radeon R (Stoney / Bristol Ridge) Series |
|
| ||||||||||||||||||||||||||||||
| Codename | Stoney Ridge | Stoney Ridge | ||||||||||||||||||||||||||||||
| Architecture | GCN 1.2/2.0 | GCN 1.2/2.0 | ||||||||||||||||||||||||||||||
| Pipelines | 192 - unified | 192 - unified | ||||||||||||||||||||||||||||||
| Core Speed | 600 (Boost) MHz | 800 (Boost) MHz | ||||||||||||||||||||||||||||||
| Memory Bus Width | 64 Bit | 64 Bit | ||||||||||||||||||||||||||||||
| Shared Memory | yes | yes | ||||||||||||||||||||||||||||||
| API | DirectX 12 (FL 12_0), OpenGL 4.4 | DirectX 12 (FL 12_0), OpenGL 4.4 | ||||||||||||||||||||||||||||||
| Power Consumption | 15 Watt | 12-45 Watt | ||||||||||||||||||||||||||||||
| technology | 28 nm | 28 nm | ||||||||||||||||||||||||||||||
| Features | UVD 6, VCE | UVD 6, VCE | ||||||||||||||||||||||||||||||
| Date of Announcement | 01.06.2016 | 01.06.2016 | ||||||||||||||||||||||||||||||
| Notebook Size | medium sized |
|
| ||||||||||||||||||||||||||||||||||||||||||||||||
Benchmarks
3DM Vant. Perf. total + AMD Radeon R4 (Stoney Ridge)
Cinebench R15 OpenGL 64 Bit + AMD Radeon R4 (Stoney Ridge)
GFXBench T-Rex HD Offscreen C24Z16 + AMD Radeon R4 (Stoney Ridge)
Average Benchmarks AMD Radeon R4 (Stoney Ridge) → 100% n=28
Average Benchmarks AMD Radeon R5 (Stoney Ridge) → 123% n=28
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
Hunt Showdown
2020
Escape from Tarkov
2020
Need for Speed Heat
2019
Borderlands 3
2019
Dirt Rally 2.0
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Apex Legends
2019
Just Cause 4
2018
Darksiders III
2018
Farming Simulator 19
2018
Hitman 2
2018
Forza Horizon 4
2018
F1 2018
2018
Monster Hunter World
2018
Far Cry 5
2018
World of Tanks enCore
2018
X-Plane 11.11
2018
Fortnite
2018
The Evil Within 2
2017
FIFA 18
2017
Ark Survival Evolved
2017
F1 2017
2017
Team Fortress 2
2017
Dirt 4
2017
Rocket League
2017
For Honor
2017
Resident Evil 7
2017
Farming Simulator 17
2016
Battlefield 1
2016
Civilization 6
2016
Overwatch
2016
Hitman 2016
2016
The Division
2016
Rainbow Six Siege
2015
World of Warships
2015
Metal Gear Solid V
2015
Dota 2 Reborn
2015
The Witcher 3
2015
Dirt Rally
2015
Battlefield Hardline
2015
F1 2014
2014
Alien: Isolation
2014
Sims 4
2014
Risen 3: Titan Lords
2014
GRID: Autosport
2014
X-Plane 10.25
2013
Company of Heroes 2
2013
GRID 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
Tomb Raider
2013
Dead Space 3
2013
Counter-Strike: GO
2012
Diablo III
2012
Anno 2070
2011
Batman: Arkham City
2011
Dirt 3
2011
Mafia 2
2010
StarCraft 2
2010
World of Warcraft
2005Average Gaming AMD Radeon R4 (Stoney Ridge) → 100%
Average Gaming 30-70 fps → 100%
Average Gaming AMD Radeon R5 (Stoney Ridge) → 124%
Average Gaming 30-70 fps → 129%
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
