AMD Radeon R4 (Stoney Ridge) vs AMD Radeon R5 (Bristol Ridge) vs AMD Radeon R2 (Stoney Ridge)
AMD Radeon R4 (Stoney Ridge)
► remove from comparison
The AMD Radeon R4 (Stoney Ridge) is an integrated graphics adapter of the weaker mobile dual-core Stoney Ridge APUs. At its launch, it is being used in the AMD A6-9210 and probably has 192 shaders running at up to 600 MHz. The performance can vary heavily depending on the configured TDP and the system memory.
Architecture and Features
The Radeon R5 is equipped with three cores from the third GCN generation (often called GCN 1.2 or 2.0 by the press). This means it is very similar to the Tonga desktop chip and supports DirectX 12 (FL 12_0), but the graphics cores can also be accessed via Mantle, OpenGL, and OpenCL. The GPU supports the HSA 1.0 standard as well and can therefore use the connection with the CPU cores very efficiently. The technical specifications are identical to the Carrizo predecessor.
The video unit includes the UVD 6 (Unified Video Decoder), which can decode HEVC/H.265 and 4K with support from the hardware. More details are available in our dedicated Stoney Ridge article.
Power Consumption
Depending on the model and configured TDP (cTDP), the 28 nm chip is specified with 10 up to 15 Watts. This means it can also be used for thin and light notebooks.
AMD Radeon R5 (Bristol Ridge)
► remove from comparison
The AMD Radeon R5 (Bristol Ridge) is an integrated graphics card for a number of mid-range mobile Bristol-Ridge-based APUs, such as those from the A10 series. It features 384 shader cores clocked at 720 MHz (15 Watt APUs) or 800 MHz (35 Watt APUs). Depending on the configurable TDP (set per laptop model) and the used main memory, the performance can also differ.
Architecture and Features

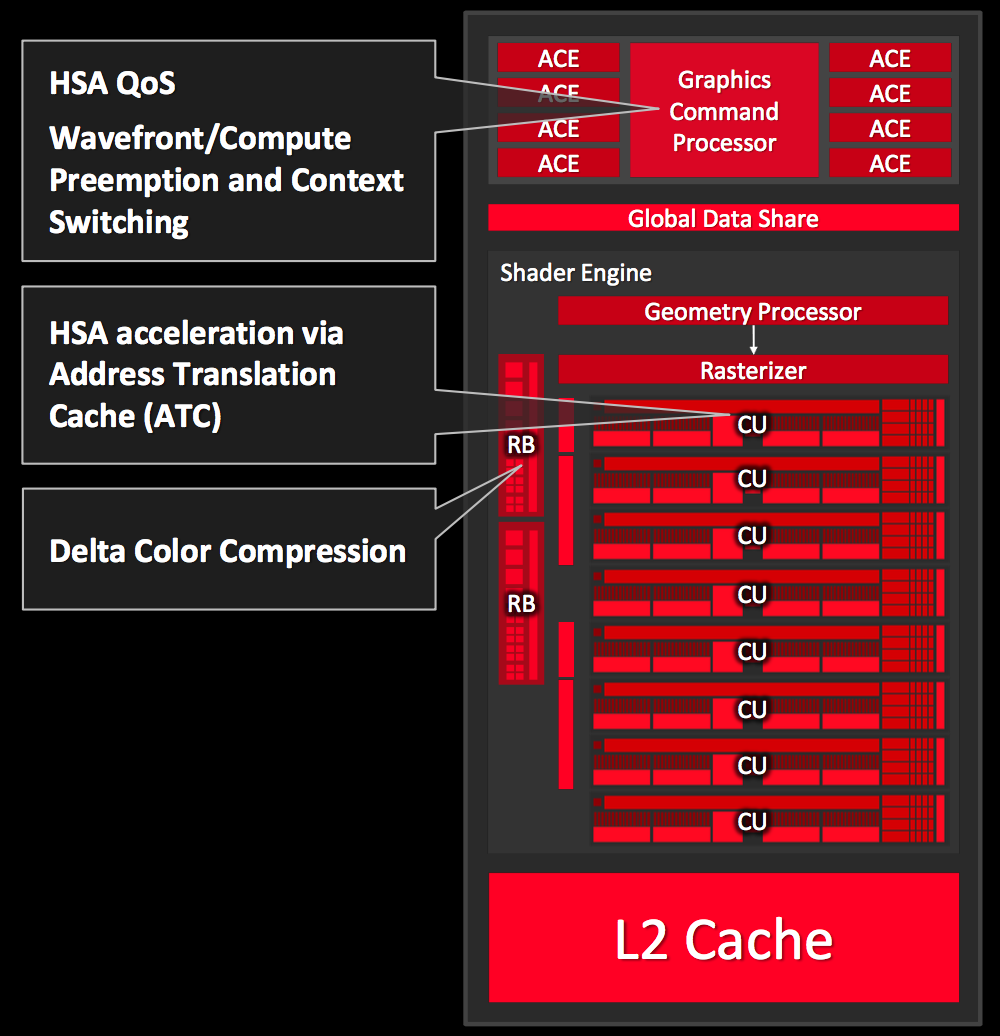

The Radeon R5 utilizes the third generation GCN architecture (sometimes referred to as GCN 1.2) similar to the desktop Tonga chip. As a result, it supports DirectX 12 (FL 12_0) with advanced color compression that leads to a 5-7% improvement in games. Furthermore, its shaders can be used with Mantle, OpenGL and OpenCL. HSA 1.0 is supported for running code on both CPU and GPU cores simultaneously. The improved video decoder UVD 6 (Unified Video Decoder) is now able to decode HVEC / H.265 up to 4K in hardware. Furthermore, the VCE (Video Codec Engine) has been improved for faster transcoding of H.264. More information on architecture and features of the Bristol Ridge architecture can be found in our launch article.
Performance
Gaming performance of the integrated R5 GPU depends on the configured TDP, model and main memory of the system. A typical ULV version with a TDP of 15 Watt paired with fast dual channel main memory is nearly on a level with the dedicated GeForce 920M or Radeon R7 M260 (see gaming benchmarks below). Therefore, demanding games of 2015 and 2016 may only run in the lowest detail settings fluently (and some not at all).
Power Consumption
Depending on the configured TDP, the still in 28 nm produced chip may be used in thin-and-light (12 - 20 Watt range) to standard-sized laptops (35 Watt TDP).
AMD Radeon R2 (Stoney Ridge)
► remove from comparison
The AMD Radeon R2 (Stoney Ridge) is an integrated graphics adapter of the weakest mobile dual-core Stoney Ridge APUs. At its launch, it is being used in the AMD E2-9010 and probably has 128 shaders running at up to 600 MHz. The performance can vary heavily depending on the configured TDP and the system memory.
Architecture and Features
The Radeon R4 is equipped with two cores from the third GCN generation (often called GCN 1.2 or 2.0 by the press). This means it is very similar to the Tonga desktop chip and supports DirectX 12 (FL 12_0), but the graphics cores can also be accessed via Mantle, OpenGL, and OpenCL. The GPU supports the HSA 1.0 standard as well and can therefore use the connection with the CPU cores very efficiently. The technical specifications are identical to the Carrizo predecessor.
The video unit includes the UVD 6 (Unified Video Decoder), which can decode HEVC/H.265 and 4K with support from the hardware. More details are available in our dedicated Stoney Ridge article.
Power Consumption
Depending on the model and configured TDP (cTDP), the 28 nm chip is specified with 10 up to 15 Watts. This means it can also be used for thin and light notebooks.
| AMD Radeon R4 (Stoney Ridge) | AMD Radeon R5 (Bristol Ridge) | AMD Radeon R2 (Stoney Ridge) | ||||||||||||||||||||||||||||||||||||||||||||||
| Radeon R (Stoney / Bristol Ridge) Series |
|
|
| |||||||||||||||||||||||||||||||||||||||||||||
| Codename | Stoney Ridge | Bristol Ridge | Stoney Ridge | |||||||||||||||||||||||||||||||||||||||||||||
| Architecture | GCN 1.2/2.0 | GCN 1.2/2.0 | GCN 1.2/2.0 | |||||||||||||||||||||||||||||||||||||||||||||
| Pipelines | 192 - unified | 384 - unified | 128 - unified | |||||||||||||||||||||||||||||||||||||||||||||
| Core Speed | 600 (Boost) MHz | 800 (Boost) MHz | 600 (Boost) MHz | |||||||||||||||||||||||||||||||||||||||||||||
| Memory Bus Width | 64 Bit | 64/128 Bit | 64 Bit | |||||||||||||||||||||||||||||||||||||||||||||
| Shared Memory | yes | yes | yes | |||||||||||||||||||||||||||||||||||||||||||||
| API | DirectX 12 (FL 12_0), OpenGL 4.4 | DirectX 12 (FL 12_0), OpenGL 4.4 | DirectX 12 (FL 12_0), OpenGL 4.4 | |||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | 15 Watt | 12-45 Watt | 15 Watt | |||||||||||||||||||||||||||||||||||||||||||||
| technology | 28 nm | 28 nm | 28 nm | |||||||||||||||||||||||||||||||||||||||||||||
| Features | UVD 6, VCE | UVD 6, VCE | UVD 6, VCE | |||||||||||||||||||||||||||||||||||||||||||||
| Date of Announcement | 01.06.2016 | 01.06.2016 | 01.06.2016 | |||||||||||||||||||||||||||||||||||||||||||||
| Transistors | 3.1 Billion | 3.1 Billion | ||||||||||||||||||||||||||||||||||||||||||||||
| Notebook Size | medium sized |
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Benchmarks
3DM Vant. Perf. total + AMD Radeon R4 (Stoney Ridge)
Cinebench R15 OpenGL 64 Bit + AMD Radeon R4 (Stoney Ridge)
GFXBench T-Rex HD Offscreen C24Z16 + AMD Radeon R4 (Stoney Ridge)
Average Benchmarks AMD Radeon R4 (Stoney Ridge) → 100% n=19
Average Benchmarks AMD Radeon R5 (Bristol Ridge) → 178% n=19
Average Benchmarks AMD Radeon R2 (Stoney Ridge) → 87% n=19
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
Hunt Showdown
2020
Escape from Tarkov
2020
Need for Speed Heat
2019
Borderlands 3
2019
Control
2019
F1 2019
2019
Anno 1800
2019
The Division 2
2019
Dirt Rally 2.0
2019
Far Cry New Dawn
2019
Metro Exodus
2019
Apex Legends
2019
Just Cause 4
2018
Darksiders III
2018
Battlefield V
2018
Farming Simulator 19
2018
Fallout 76
2018
Hitman 2
2018
Forza Horizon 4
2018
F1 2018
2018
Monster Hunter World
2018
The Crew 2
2018
Far Cry 5
2018
World of Tanks enCore
2018
X-Plane 11.11
2018
Fortnite
2018
Call of Duty WWII
2017
ELEX
2017
F1 2017
2017
Team Fortress 2
2017
Dirt 4
2017
Rocket League
2017
Prey
2017
For Honor
2017
Resident Evil 7
2017
Titanfall 2
2016
Farming Simulator 17
2016
Battlefield 1
2016
Civilization 6
2016
Overwatch
2016
Need for Speed 2016
2016
Hitman 2016
2016
The Division
2016
Far Cry Primal
2016
XCOM 2
2016
Rainbow Six Siege
2015
Just Cause 3
2015
Fallout 4
2015
Anno 2205
2015
World of Warships
2015
Metal Gear Solid V
2015
Mad Max
2015
Dota 2 Reborn
2015
The Witcher 3
2015
Dirt Rally
2015
GTA V
2015
Battlefield Hardline
2015
F1 2014
2014
Alien: Isolation
2014
Sims 4
2014
Risen 3: Titan Lords
2014
GRID: Autosport
2014
Battlefield 4
2013
GRID 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
Tomb Raider
2013
Crysis 3
2013
Dead Space 3
2013
Counter-Strike: GO
2012
Diablo III
2012
Anno 2070
2011
Dirt 3
2011
StarCraft 2
2010
World of Warcraft
2005Average Gaming AMD Radeon R4 (Stoney Ridge) → 100%
Average Gaming 30-70 fps → 100%
Average Gaming AMD Radeon R5 (Bristol Ridge) → 145%
Average Gaming 30-70 fps → 150%
Average Gaming AMD Radeon R2 (Stoney Ridge) → 84%
Average Gaming 30-70 fps → 91%
| AMD Radeon R4 (Stoney Ridge) | AMD Radeon R5 (Bristol Ridge) | AMD Radeon R2 (Stoney Ridge) | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | ||||
| Hunt Showdown | 7.1 | 10.1 | |||||||||||||||||||
| Escape from Tarkov | 8.7 | 12.4 | |||||||||||||||||||
| Red Dead Redemption 2 | 4.1 | 6.6 | |||||||||||||||||||
| Star Wars Jedi Fallen Order | 4.8 | 6.5 | |||||||||||||||||||
| Need for Speed Heat | 7.1 | 9.6 | |||||||||||||||||||
| Ghost Recon Breakpoint | 5 | 6 | |||||||||||||||||||
| Borderlands 3 | 8.2 | 10.2 | |||||||||||||||||||
| Control | 8.1 | 10.2 | |||||||||||||||||||
| F1 2019 | 11 | 17 | |||||||||||||||||||
| Total War: Three Kingdoms | 11.8 | 12.8 | |||||||||||||||||||
| Anno 1800 | 11.2 | 12.7 | |||||||||||||||||||
| Dirt Rally 2.0 | 26.3 | 29.1 | |||||||||||||||||||
| Far Cry New Dawn | 3 | 8 | |||||||||||||||||||
| Metro Exodus | 7.2 | 7.9 | |||||||||||||||||||
| Apex Legends | 12.3 | 14.4 | |||||||||||||||||||
| Just Cause 4 | 10 | 11.9 | |||||||||||||||||||
| Darksiders III | 20.6 | 5.2 | 21 | ||||||||||||||||||
| Farming Simulator 19 | 32.4 | 11.7 | 30.7 | ||||||||||||||||||
| Hitman 2 | 6.6 | 9.1 | |||||||||||||||||||
| Call of Duty Black Ops 4 | 8.8 | 8.9 | |||||||||||||||||||
| Assassin´s Creed Odyssey | 9 | 9 | |||||||||||||||||||
| Shadow of the Tomb Raider | 11 | 11 | |||||||||||||||||||
| F1 2018 | 12 | 15 | |||||||||||||||||||
| Monster Hunter World | 2.5 | 8.6 | |||||||||||||||||||
| Far Cry 5 | 3 | 5 | |||||||||||||||||||
| World of Tanks enCore | 80.3 | 10.7 | 88.2 | 12.6 | |||||||||||||||||
| X-Plane 11.11 | 12.2 | 12.7 | 8.6 | ||||||||||||||||||
| Kingdom Come: Deliverance | 7.3 | 9.4 | 4.4 | ||||||||||||||||||
| Final Fantasy XV Benchmark | 6.8 | 8 | 4 | ||||||||||||||||||
| ELEX | 8.9 | 10.7 | 5.8 | ||||||||||||||||||
| Middle-earth: Shadow of War | 15 | 16 | 7 | ||||||||||||||||||
| Team Fortress 2 | 23 | 22.6 | 38.5 | 38.3 | 31.1 | 21.9 | 19.7 | 18.5 | |||||||||||||
| Dirt 4 | 29.4 | 39.2 | 12.1 | ||||||||||||||||||
| Rocket League | 31.3 | 61.3 | 22.8 | 14.3 | 30.8 | ||||||||||||||||
| Ghost Recon Wildlands | 9.7 | 12.7 | 5.6 | ||||||||||||||||||
| For Honor | 15.1 | 20.8 | 6.8 | ||||||||||||||||||
| Resident Evil 7 | 24.3 | 18 | 38.8 | 29.1 | |||||||||||||||||
| Farming Simulator 17 | 38 | 24.8 | 60.3 | 38.4 | 43.5 | 26.4 | |||||||||||||||
| Battlefield 1 | 8.2 | 16.5 | 12.1 | ||||||||||||||||||
| Civilization 6 | 27.3 | 30.5 | 13.9 | 21.6 | 8.5 | ||||||||||||||||
| Deus Ex Mankind Divided | 8.4 | 13.9 | 10.1 | ||||||||||||||||||
| Overwatch | 20.7 | 16.9 | 32.5 | 29 | 16 | 11.6 | 17.5 | 15 | |||||||||||||
| Ashes of the Singularity | 7.3 | 8 | 5 | ||||||||||||||||||
| World of Warships | 30 | 22.1 | 41.2 | 29.1 | 16.9 | 14 | 25.5 | 20.3 | |||||||||||||
| Metal Gear Solid V | 26 | 17.9 | 46.1 | 30 | 23.6 | 18.5 | |||||||||||||||
| Dota 2 Reborn | 32 | 19 | 37.9 | 24.1 | 17.7 | 16.7 | 28.7 | 18.4 | |||||||||||||
| Dirt Rally | 48.8 | 16.2 | 65.3 | 20.6 | 13.1 | 25.1 | 13 | ||||||||||||||
| Battlefield Hardline | 15.1 | 12 | 22.8 | 12.8 | 6.7 | 4.9 | |||||||||||||||
| Dragon Age: Inquisition | 15.1 | 10.9 | 25.7 | 18.2 | 11.2 | 8.7 | |||||||||||||||
| F1 2014 | 30 | 26 | 54 | 34 | 28 | 18 | |||||||||||||||
| Middle-earth: Shadow of Mordor | 18.1 | 11.6 | 34.6 | 18.3 | |||||||||||||||||
| Sims 4 | 90 | 28.8 | 99.6 | 35.4 | 19.4 | 15.8 | 82.1 | 20.7 | |||||||||||||
| GRID: Autosport | 57 | 24.5 | 70.1 | 27.3 | 15.5 | 12.5 | 46 | 16.9 | |||||||||||||
| GRID 2 | 46.3 | 28.4 | 22.5 | 39.5 | 20.7 | 12.6 | |||||||||||||||
| BioShock Infinite | 32 | 15 | 12 | 5 | 64 | 37 | 30 | 11 | 34 | 17 | 14 | ||||||||||
| Tomb Raider | 39.4 | 19.9 | 13.2 | 67.4 | 37.4 | 21.1 | 9.9 | 35.7 | 15.7 | 11.1 | |||||||||||
| Dead Space 3 | 45.5 | 22.9 | 19.5 | 50.9 | 29.3 | 24.6 | 16.9 | 43.5 | 20.8 | 16.5 | |||||||||||
| Counter-Strike: GO | 29.7 | 21.9 | 17.8 | 26.9 | 21.7 | 20 | |||||||||||||||
| Diablo III | 44.8 | 31.9 | 27.7 | 50.7 | 36.6 | 32.9 | 23.6 | 28.5 | 17.8 | 15.9 | |||||||||||
| Anno 2070 | 53.8 | 23.7 | 15.5 | 62.9 | 33.5 | 21.5 | 9.4 | 48.8 | 22.3 | 13.9 | |||||||||||
| The Elder Scrolls V: Skyrim | 25.7 | 16.5 | 11.3 | 36.2 | 25.9 | 18.8 | 24.7 | 16.3 | 10.8 | ||||||||||||
| Deus Ex Human Revolution | 47.7 | 21.9 | 64.1 | 41.4 | 16.2 | 41 | 20.3 | ||||||||||||||
| Dirt 3 | 66.9 | 39 | 28 | 12.9 | 55.7 | 28.1 | 22.1 | ||||||||||||||
| StarCraft 2 | 89.9 | 24.1 | 105.8 | 32.1 | 26.2 | 17.2 | 59.6 | 17.8 | 14.1 | ||||||||||||
| AMD Radeon R4 (Stoney Ridge) | AMD Radeon R5 (Bristol Ridge) | AMD Radeon R2 (Stoney Ridge) | |||||||||||||||||||
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 44 15 4 | 26 2 | 10 | 2 | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 35 14 11 | 26 10 | 12 4 | 13 | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 13 11 1 | 23 | 11 | | | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
