AMD Radeon HD 8670D vs AMD Radeon HD 8570D
AMD Radeon HD 8670D
► remove from comparison

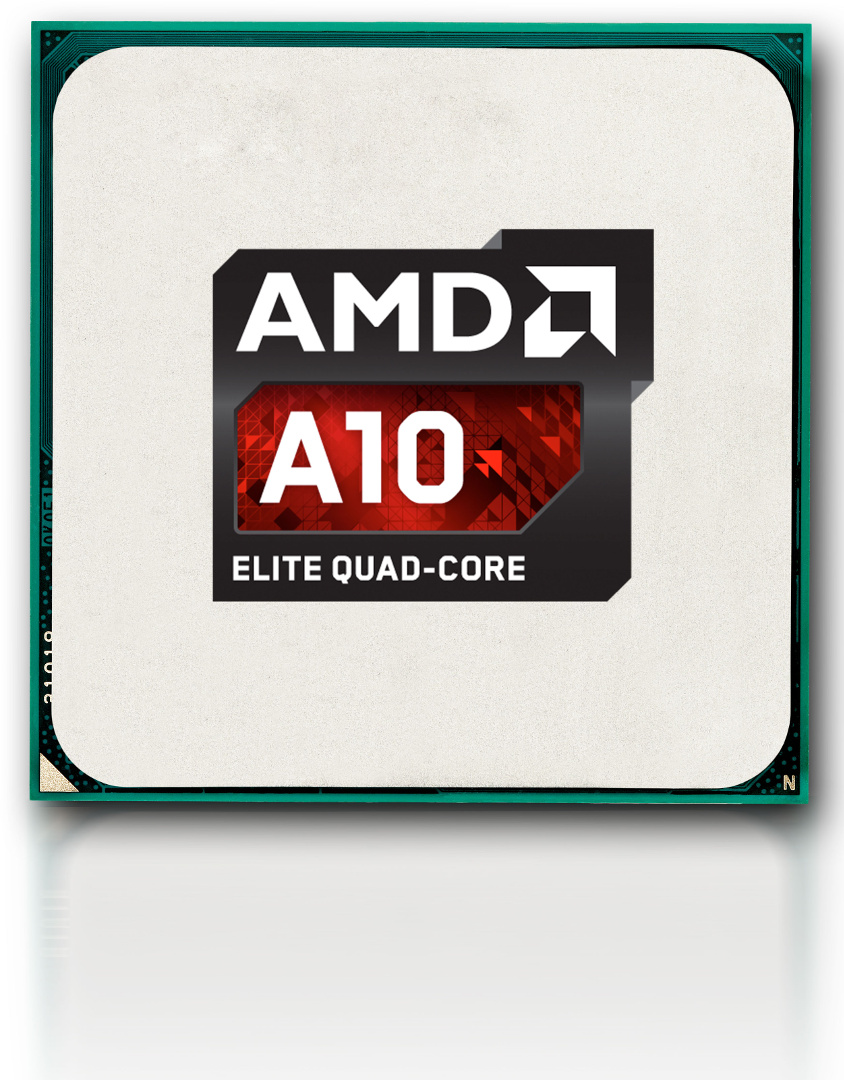

The AMD Radeon HD 8670D is a processor graphics card in the desktop Richland APUs from AMD. It is the fastest model of its family based on the VLIW4 architecture of the Radeon HD 6900 desktop series and is featured only in the A10 series (e.g. A10-6800K). The 8670D offers a 44 MHz faster core clock (+5.5%) compared to the older Trinity based 7660D, but is otherwise technically identical. The graphics card features no dedicated graphics memory and thus depends on the speed and size of the system memory with support up to DDR3-2133.
The performance of the Radeon HD 8670D differs depending on the benchmark. In synthetic benchmarks like 3DMark 11, final scores suggest better gaming performance when in practice the frame rates are slightly lower. Most notably, it has a clear advantage over the Haswell GT2 desktop processor graphics card (HD Graphics 4600) as of mid 2013. Demanding games like Crysis 3 are therefore only playable in low details and resolutions (see below).
The integrated UVD3 video decoder (Avivo HD) allows full decoding of Multi-View Codec (MVC), MPEG-4 Part 2 (DivX, xVid), MPEG-4 AVC/H.264 and Adobe Flash HD videos.
The shader cores of the chip can also be used for general computing via OpenCL and DirectCompute 11.
AMD Radeon HD 8570D
► remove from comparison

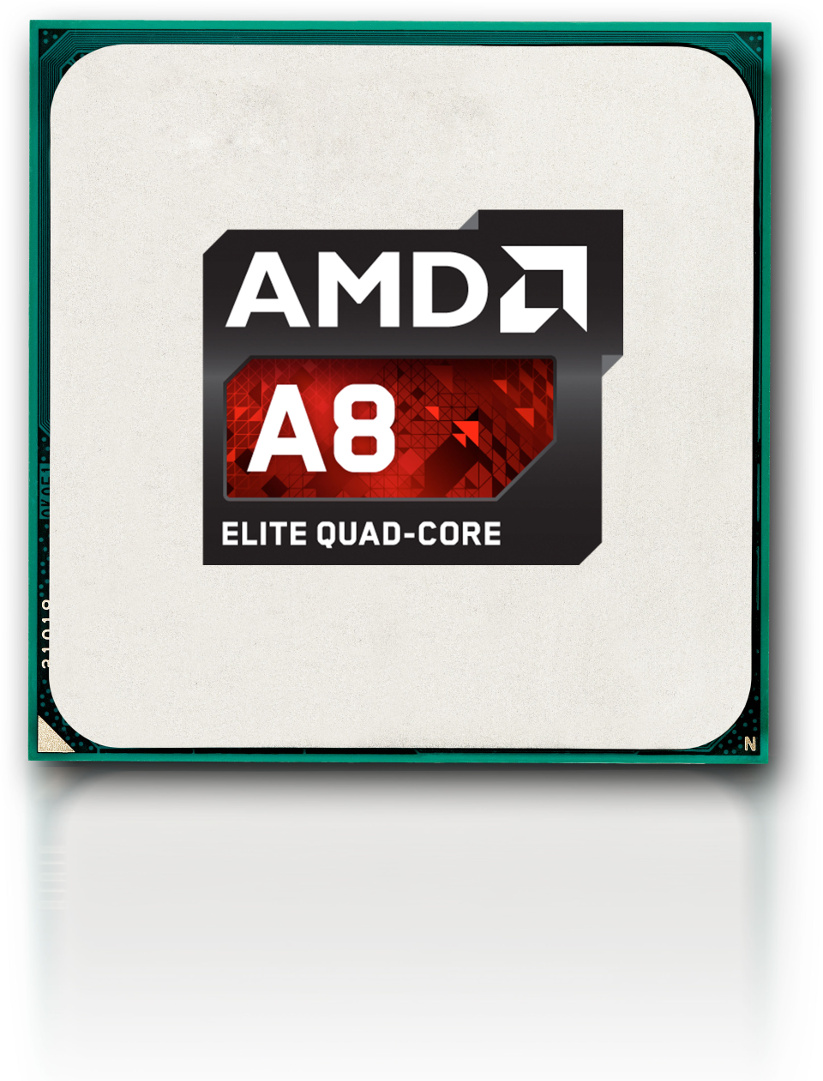

The AMD Radeon HD 8570D is a processor graphics card in the desktop Richland A8 series of APUs from AMD (e.g. A8-6600K). It is the second fastest model of its family and is based on the VLIW4 architecture of the Radeon HD 6900 desktop series. Compared to the faster HD 8670D, the 8570D features much less shader cores (384 vs. 256 cores). The graphics card features no dedicated graphics memory and thus depends on the speed and size of the system memory.
The performance of the Radeon HD 8570D differs depending on the benchmark. In synthetic benchmarks like 3DMark 11, final scores suggest better gaming performance when in practice the frame rates are slightly lower. In our gaming tests the HD 8570D was similar to the fastest Trinity desktop model, the Radeon HD 7660D, which features more shader cores at lower clock speeds. Demanding games like Crysis 3 are therefore only playable in low details and resolutions (see below).
The integrated UVD3 video decoder (Avivo HD) allows full decoding of Multi-View Codec (MVC), MPEG-4 Part 2 (DivX, xVid), MPEG-4 AVC/H.264 and Adobe Flash HD videos.
The shader cores of the chip can also be used for general computing via OpenCL or DirectCompute 11.
| AMD Radeon HD 8670D | AMD Radeon HD 8570D | |||||||||||||||||||
| Radeon HD 8000D Series |
|
| ||||||||||||||||||
| Codename | Richland | Richland | ||||||||||||||||||
| Architecture | Terascale 3 | Terascale 3 | ||||||||||||||||||
| Pipelines | 384 - unified | 256 - unified | ||||||||||||||||||
| Core Speed | 844 MHz | 844 MHz | ||||||||||||||||||
| Shared Memory | yes | yes | ||||||||||||||||||
| API | DirectX 11, Shader 5.0, OpenGL 4.2 | DirectX 11, Shader 5.0, OpenGL 4.2 | ||||||||||||||||||
| technology | 32 nm | 32 nm | ||||||||||||||||||
| Date of Announcement | 04.06.2013 | 26.09.2012 |
|
| ||||||||||||||||
Benchmarks
3DM Vant. Perf. total + AMD Radeon HD 8670D
Cinebench R15 OpenGL 64 Bit + AMD Radeon HD 8670D
GFXBench T-Rex HD Offscreen C24Z16 + AMD Radeon HD 8670D
Average Benchmarks AMD Radeon HD 8670D → 100% n=20
Average Benchmarks AMD Radeon HD 8570D → 83% n=20
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
The Witcher 3
2015
GTA V
2015
X-Plane 10.25
2013
Call of Duty: Ghosts
2013
Battlefield 4
2013
F1 2013
2013
Fifa 14
2013
Total War: Rome II
2013
Saints Row IV
2013
Dota 2
2013
Company of Heroes 2
2013
GRID 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
SimCity
2013
Tomb Raider
2013
Crysis 3
2013
Hitman: Absolution
2012
Fifa 13
2012
Guild Wars 2
2012
Sleeping Dogs
2012
Diablo III
2012
Anno 2070
2011
Battlefield 3
2011
Quake 3 Arena - Timedemo
1999Average Gaming AMD Radeon HD 8670D → 100%
Average Gaming 30-70 fps → 100%
Average Gaming AMD Radeon HD 8570D → 83%
Average Gaming 30-70 fps → 85%
| AMD Radeon HD 8670D | AMD Radeon HD 8570D | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | |||
| The Witcher 3 | 21.2 | |||||||||||||
| GTA V | 50 | 42 | 14.6 | 5.8 | 43.7 | 27.7 | 11.6 | |||||||
| Assassin´s Creed IV: Black Flag | 39.4 | 31.5 | 16.7 | 6.6 | 34.8 | 25.4 | 12.8 | |||||||
| X-Plane 10.25 | 60.1 | 29.4 | 12.1 | 8.5 | 54.5 | 26 | 11.3 | 7.6 | ||||||
| Need for Speed: Rivals | 30 | 29.2 | 23.9 | 13.6 | 30 | 23 | 18 | |||||||
| Call of Duty: Ghosts | 56.3 | 40.3 | 17.7 | 6.2 | ||||||||||
| Battlefield 4 | 52.4 | 37 | 23.6 | 7.9 | 37 | 26.5 | 17.8 | 6.2 | ||||||
| Batman: Arkham Origins | 79 | 46 | 26 | 14 | 64 | 37 | 21 | 10 | ||||||
| F1 2013 | 104 | 53 | 58 | 25 | 94 | 54 | 35 | 20 | ||||||
| Fifa 14 | 263 | 188 | 165 | 102 | 140 | 84 | ||||||||
| Total War: Rome II | 65 | 48.7 | 39 | 7.3 | 55 | 43 | 32.8 | 6.4 | ||||||
| Saints Row IV | 40.5 | 35.2 | 18.6 | 9.9 | 36 | 30.3 | 15.4 | 8.5 | ||||||
| The Bureau: XCOM Declassified | 55 | 26 | 11 | 7 | 48 | 26.6 | 11.5 | 6.4 | ||||||
| Splinter Cell: Blacklist | 39 | 13.9 | 7.5 | 49 | 34.3 | 11 | 6 | |||||||
| Dota 2 | 88 | 57.6 | 25.4 | 50 | 21.2 | |||||||||
| Company of Heroes 2 | 27.2 | 22.1 | 11.8 | 5.9 | 22.9 | 17.2 | 9 | 3.7 | ||||||
| GRID 2 | 114.1 | 67 | 47.2 | 15.7 | 106.4 | 60.1 | 40.3 | 12.8 | ||||||
| Metro: Last Light | 39.2 | 29.7 | 14.8 | 7.6 | 33.8 | 25.6 | 12.5 | 6.3 | ||||||
| BioShock Infinite | 76.5 | 39.6 | 33.1 | 10.1 | 67.8 | 33.9 | 28 | 7.3 | ||||||
| StarCraft II: Heart of the Swarm | 196 | 73.7 | 42.9 | 15.6 | ||||||||||
| SimCity | 80 | 30.7 | 23.5 | 11.3 | ||||||||||
| Tomb Raider | 95.6 | 46.6 | 35 | 13.3 | 78.2 | 38.1 | 24.5 | 10.3 | ||||||
| Crysis 3 | 39.4 | 23.5 | 14.9 | 5.8 | 34.2 | 20.4 | 13.1 | 4.8 | ||||||
| Hitman: Absolution | 39.5 | 27.2 | 14.5 | 6.4 | ||||||||||
| Call of Duty: Black Ops 2 | 112 | 57 | 26.7 | 17.7 | ||||||||||
| Fifa 13 | 219 | 145 | 126 | 93 | ||||||||||
| Guild Wars 2 | 60 | 31.9 | 18 | |||||||||||
| Sleeping Dogs | 73.6 | 55.4 | 23.6 | 6.7 | ||||||||||
| Diablo III | 115 | 76 | 62 | 41 | ||||||||||
| Anno 2070 | 113 | 50 | 30 | 16 | ||||||||||
| The Elder Scrolls V: Skyrim | 64 | 39.8 | 30.1 | 15.9 | ||||||||||
| Battlefield 3 | 41.4 | 28.3 | 22.8 | 8 | ||||||||||
| Sims 3 | 65 | 47 | ||||||||||||
| Quake 3 Arena - Timedemo | 659 | |||||||||||||
| AMD Radeon HD 8670D | AMD Radeon HD 8570D | |||||||||||||
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 11 15 3 | 8 17 4 2 | 18 10 1 3 | 28 1 2 | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 11 5 | 9 8 1 | 14 3 1 | 15 1 | | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
