ATI Mobility Radeon 9700 vs ATI Mobility Radeon 9800

ATI Mobility Radeon 9700

► remove from comparison ATI Mobility Radeon 9700

ATI Mobility Radeon 9700 is the AGP pendant of the ATI Mobility Radeon X600. In these days it was the fastest available graphic card for notebooks and started the time of gaming noteboks. Despite its name, technically it is not related to the desktop graphic card 9700 (Pro), but with the 9600. Compared with the Mobility Radeon 9600 it is only higher clocked. The performance is like with X1400.

The version with only 32 MB memory can have a 64 bit memory interface. Then it is clearly slower!

ATI Mobility Radeon 9800

► remove from comparison ATI Mobility Radeon 9800

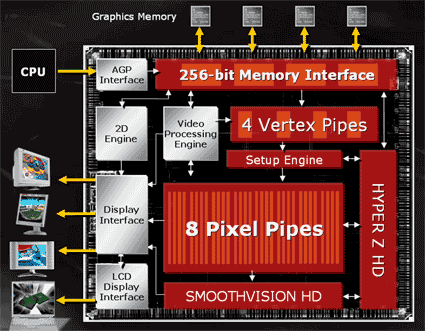

ATI Mobility Radeon 9800 is a slim X800 for AGP with energy saving functions and needs a lot of current. Therefore the performance of this card is correspondingly well, but it was rarely used (in a Dell 17" notebook). Nowadays (2008) the performance can be compared to middle class graphics cards.

The videoShader HD technology offers MPEG 1/2/4 decoding acceleration.

show full text
ATI Mobility Radeon 9700ATI Mobility Radeon 9800
Mobility Radeon 9x00 Series
Mobility Radeon 9800 8/4 cores @ 0.35 GHz256 Bit @ 300 MHz
Mobility Radeon 9700 4/2 cores @ 0.45 GHz128 / 64 Bit @ 275 MHz
Mobility Radeon 9600 compare 4/2 cores @ 0.3 GHz128 / 64 Bit @ 300 MHz
Mobility Radeon 9550 compare 4/2 cores @ 0.21 GHz64 Bit @ 183 MHz
Mobility Radeon 9800 8/4 cores @ 0.35 GHz256 Bit @ 300 MHz
Mobility Radeon 9700 4/2 cores @ 0.45 GHz128 / 64 Bit @ 275 MHz
Mobility Radeon 9600 compare 4/2 cores @ 0.3 GHz128 / 64 Bit @ 300 MHz
Mobility Radeon 9550 compare 4/2 cores @ 0.21 GHz64 Bit @ 183 MHz
CodenameM11M18
Pipelines4 / 2 Pixel- / Vertexshader8 / 4 Pixel- / Vertexshader
Core Speed450 MHz350 MHz
Memory Speed275 MHz300 MHz
Memory Bus Width128 / 64 Bit256 Bit
Memory TypeDDRDDR2 / DDR3
Max. Amount of Memory256 MB256 MB
Shared Memorynono
APIDirectX 9, Shader 2.0DirectX 9, Shader 2.0
technology130 nm130 nm
FeaturesSmartshader 2.0, Smoothvision 2.1, Powerplay 4.0130nm low-k, Powerplay
Notebook Sizemedium sizedlarge
Date of Announcement01.06.2004 01.07.2004
Link to Manufacturer Pagewww.ati.comwww.ati.com
Transistors110 Million
Information110 Mio Transistoren, 130nm

Benchmarks

3DMark 2001SE - 3DMark 2001 - Standard
10000 Points (10%)
17800 Points (18%)
3DMark 03 - 3DMark 03 - Standard
min: 2779     avg: 2890     median: 2889.5 (2%)     max: 3000 Points
6500 Points (3%)
3DMark 05 - 3DMark 05 - Standard
1200 Points (1%)
2800 Points (3%)
3DMark 06 3DMark 06 - Score Unknown Settings + ATI Mobility Radeon 9700
3DMark 06
280 Points (0%)
3DMark 06 - Score Unknown Settings + ATI Mobility Radeon 9800
860 Points (1%)
3DMark 06 - Standard 1280x1024 + ATI Mobility Radeon 9700
3DMark 06
424 Points (1%)

Average Benchmarks ATI Mobility Radeon 9700 → 100% n=4

Average Benchmarks ATI Mobility Radeon 9800 → 236% n=4

- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
