Intel Iris Xe Graphics G7 80EUs vs Intel UHD Graphics Xe G4 48EUs vs Intel UHD Graphics 24EUs (Alder Lake-N)

The Intel Xe Graphics G7 80EUs (Tiger-Lake U GPU with 80 EUs) is a integrated graphics card in the mid range Tiger-Lake U CPUs (15 - 28 Watt, e.g. Core i5 11th Gen CPUs). It is using the new Xe architecture (Gen12) and should be announced later in 2020.

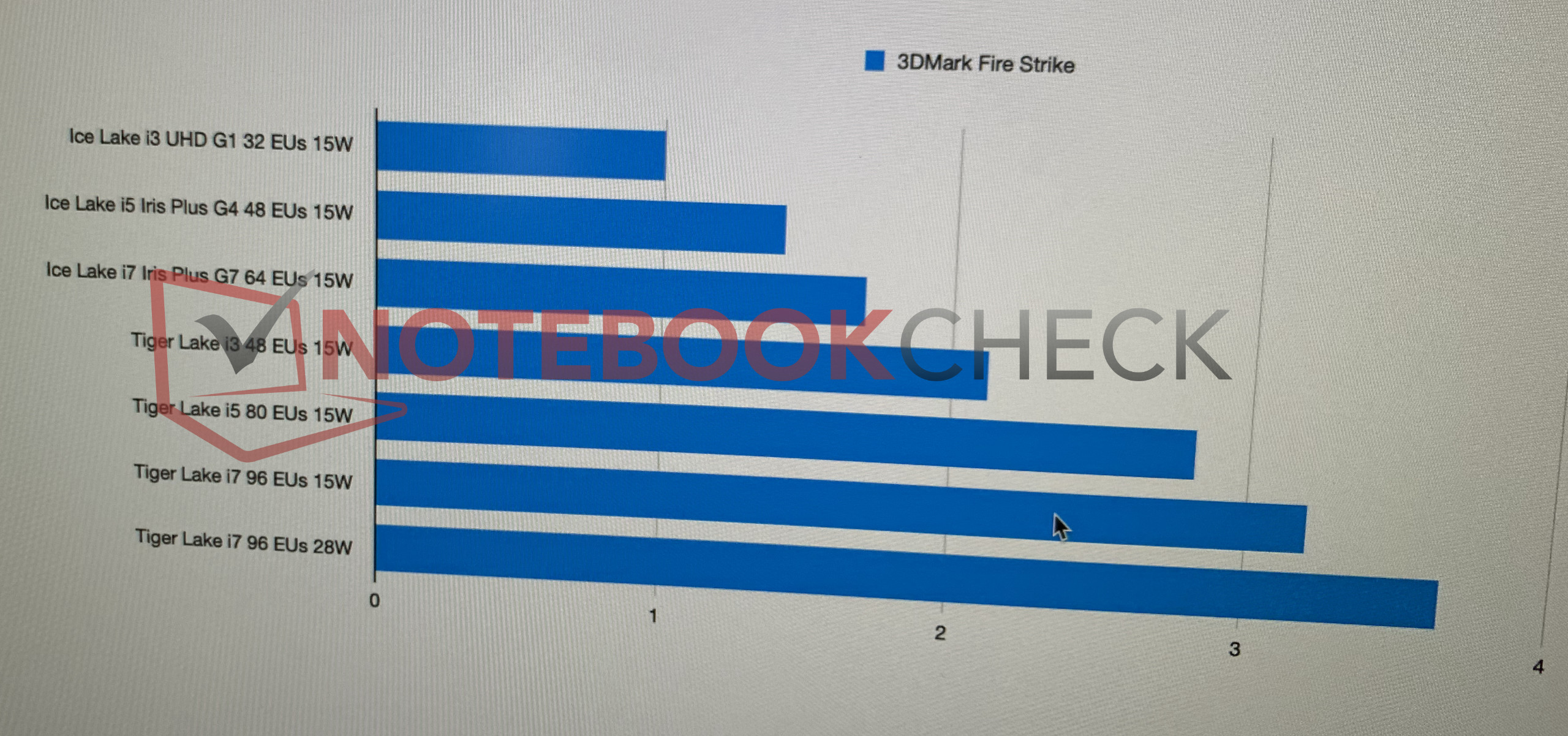

The performance depends on the TDP settings of the laptop and the used cooling. First informations show that the chip can be configured at 15 and 28 Watt TDP default (as the Ice Lake-U chips) and the performance should be around a dedicated GeForce MX330 in 3DMark benchmarks. For gaming we are expecting a bit worse performance due to the missing dedicated graphics memory and driver support. Compared to the older Iris Plus G4 in Ice Lake chips, the Tiger Lake GPU should be nearly twice as fast. Benchmarks with various laptops show that the 80EU version lacks about 18% behind the faster 96EU version and on par with the MX330. Compared to AMD iGPUs, the G7 80EU positions itself around the Vega 7 and Vega 8 chips (see chart below for details).

Therefore, the iGPU is still only for lowest graphical settings and low resolutions in demanding games. Some modern games like Days Gone or Cyberpunk wont run over 30 fps in minimum settings (see below).

The Tiger Lake SoCs and therefore the integrated GPU are manufactured in the modern 10nm+ (10nm Superfin) process (improved 10nm process) at Intel and therefore should offer a very good efficiency.

The Intel UHD Graphics Xe Graphics G4 (Tiger-Lake U GPU with 48 EUs) is a integrated graphics card in the low end Tiger-Lake U CPUs (15 Watt, e.g. Core i3 11th Gen). It is using the new Xe architecture (Gen12) and should be announced later in 2020.

The performance depends on the TDP settings of the laptop and the used cooling. First informations show that the chip can be configured at 15 and 28 Watt TDP default (as the Ice Lake-U chips) and the performance should be around a dedicated GeForce MX230 in 3DMark benchmarks. For gaming we are expecting a bit worse performance due to the missing dedicated graphics memory and driver support. Compared to the fastest Ice Lake iGPU (Iris Plus G7), the 48 EU version in an i3 should be slightly faster. Therefore, the iGPU is still only for lowest graphical settings and low resolutions in demanding games.

The Tiger Lake SoCs and therefore the integrated GPU are manufactured in the modern 10nm+ process (improved 10nm process) at Intel and therefore should offer a very good efficiency.

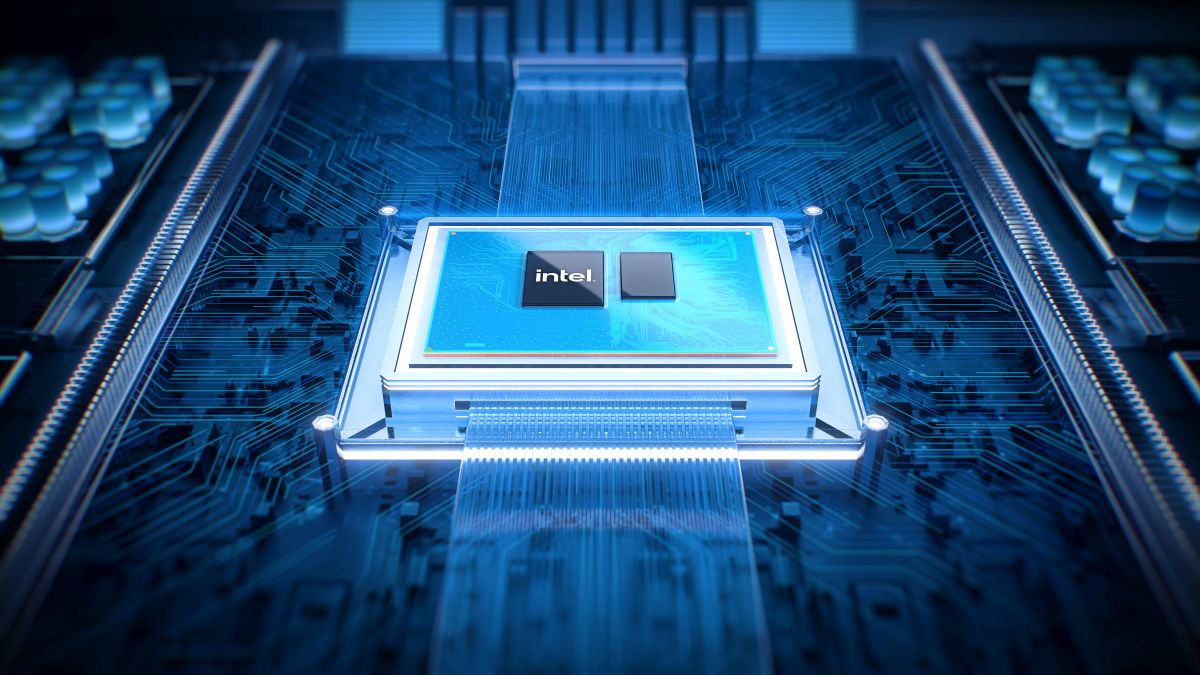

The Intel UHD Graphics 24EUs (Xe-LP, Alder Lake-N, Gen 12.2) is a integrated graphics card in the mid range Alder Lake-N models like the Intel Processor N100. It is using the current Xe-LP architecture (Gen12) and was announced in late 2022. The GPU uses 24 of the 32 EUs (execution units) in the chip (192 of the 256 shader cores).

The performance is severely hindered by the single channel memory controller of Alder Lake-N, the low CPU performance and relatively low shader count. Therefore, only very low demanding games like Dota 2 in lowest settings can be played with the UHD Graphics GPU.

The whole SoC is manufactured in 10nm (Intel 7 process) at Intel.
