Intel Iris Graphics 6100 vs Intel Iris Pro Graphics 6200 vs Intel Iris Pro Graphics 5200

Intel Iris Graphics 6100

The Intel Iris Graphics 6100 (GT3) is an integrated Broadwell graphics card revealed in Q1 2015. It can be found in several low-voltage SoCs (28 W TDP) such as the Core i5-5257U or i7-5557U. While Core i5 and Core i7 chips feature 48 EUs, the Core i3 version offers just 47 EUs. Depending on the specific CPU, the maximum GPU frequency varies between 1000 and 1100 MHz.

Architecture and Features

Broadwell features a GPU based on the Intel Gen8 architecture, which has been optimized in various aspects compared to the previous Gen7.5 (Haswell). Inter alia, the shader arrays called "subslice" have been reorganized and now offer 8 Execution Units (EUs) each. Three subslices form a "slice" for a total of 24 EUs. Combined with other improvements such as larger L1 caches and an optimized frontend, the integrated GPU has become faster and more efficient than its predecessor.

The Iris Graphics 6100 represents the top-end version of the Broadwell GPU family and consists of two slices with 48 EUs. Beyond that, there is also a low-end (GT1, 12 EUs), a mid-range (GT2, 24 EUs) and a high-end variant (GT3e, 48 EUs + eDRAM).

All Broadwell GPUs support OpenCL 2.0 and DirectX 12 (FL 11_1). The video engine can now decode H.265 using both fixed function hardware as well as available GPU shaders. Up to three displays can be connected via DP 1.2/eDP 1.3 (max. 3840 x 2160 @ 60 Hz) or HDMI 1.4a (max. 3840 x 2160 @ 24 Hz). HDMI 2.0, however, is not supported.

Performance

Depending on the specific CPU, the maximum GPU frequency varies between 1000 and 1100 MHz. Even though the Iris Graphics 6100 is technically identical to the HD Graphics 6000, the higher TDP (28 W instead of 15 W) leads to a better utilization of the Turbo Boost and therefore a superior performance. Overall, the Iris 6100 is about as fast as a dedicated GeForce 820M and outperforms the former Iris Graphics 5100 by 20 - 25 percent.

Older and less demanding games such as Diablo III, Counter-Strike: GO oder Dota 2 can be played fluently in 1366 x 768 pixels and high settings. More demanding titles, however, may require lower settings or won't run at a decent framerate at all.

Power Consumption

Utilizing a new 14 nm process, the Broadwell LV chips are specified at 28 W TDP and therefore suited for medium-sized ultrabooks. The TDP is flexible and can be further reduced (23 W), which has a significant impact on performance.

Intel Iris Pro Graphics 6200

The Intel Iris Pro Graphics 6200 (GT3e) is an integrated graphics card and the fastest GPU of the Broadwell generation. It is built into several high-end CPUs specified at 47 W TDP. The so-called GT3e GPU offers a fast eDRAM cache as well as 48 EUs (Execution Units) and therefore somewhat more shader power than the previous Iris Pro Graphics 5200. The clock range depends on the model it is built into (up to 1150 MHz with Turbo Boost).

Architecture and Features

Broadwell features a GPU based on the Intel Gen8 architecture, which has been optimized in various aspects compared to the previous Gen7.5 (Haswell). Inter alia, the shader arrays called "subslice" have been reorganized and now offer 8 Execution Units (EUs) each. Three subslices form a "slice" for a total of 24 EUs. Combined with other improvements such as larger L1 caches and an optimized frontend, the integrated GPU has become faster and more efficient than its predecessor.

The Iris Pro Graphics 6200 represents the high-end "GT3e" version of the Broadwell GPU family and consists of two slices with 48 EUs in total. In addition, there is also a fast eDRAM cache (128 MB), which can be found only on the Iris Pro.

All Broadwell GPUs support OpenCL 2.0 and DirectX 12 (FL 11_1). The video engine can now decode H.265 using both fixed function hardware as well as available GPU shaders. Up to three displays can be connected via DP 1.2/eDP 1.3 (max. 3840 x 2160 @ 60 Hz) or HDMI 1.4a (max. 3840 x 2160 @ 24 Hz). HDMI 2.0, however, is not supported.

Performance

Depending on the benchmark, the Iris Pro Graphics 6200 performs similar to a dedicated GeForce GT 750M or GeForce 940M. Many games of 2014/2015 can be played fluently in WXGA resolution (1366 x 768) and medium detail settings. However, very demanding games such as The Witcher 3 will require lower resolutions and/or details.

Power Consumption

Utilizing a new 14 nm FinFET process, the Iris Pro Graphics 6200 is specified at 47 W TDP (entire chip including CPU, GPU and memory controller) and therefore suited for medium-sized notebooks. The TDP is flexible and can be further reduced (37 W), which has a significant impact on performance.

Intel Iris Pro Graphics 5200

The Intel Iris Pro Graphics 5200 (GT3 + eDRAM), also called the HD Graphics 5200, is a processor graphics card that is included in some of the Haswell processors of 2013 (e.g. Core i7-4750HQ). It represents the highest configuration of the integrated graphics unit (40 execution units) and also has an additional eDRAM cache (128 MB on-package, 77 mm², 102 GB/s). The base clock can be automatically overclocked using Turbo Boost technology. Depending on the processor model, the base and turbo clock rates may differ (usually up to 1200 - 1300 MHz), resulting in varying graphics performance between CPU models.

In comparison to the HD 4000, the graphics core has been modified extensively. The Iris Pro supports DirectX 11.1, OpenCL 1.2 and OpenGL 4.0. It also features an improved decoder for 4K videos and the fast Quick Sync encoder.

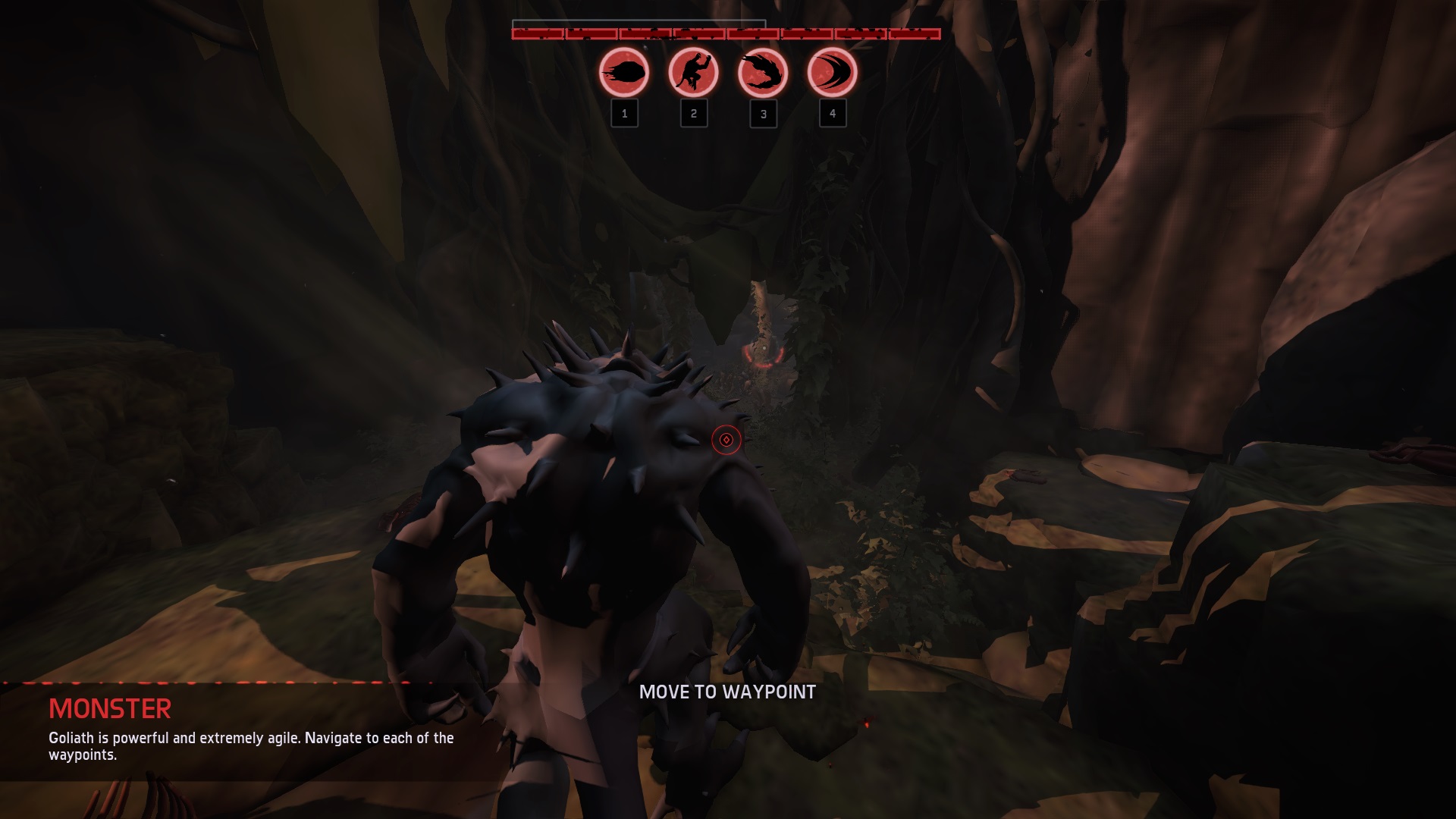

Thanks to the fast eDRAM memory, the average performance of the Iris Pro is only about 15 percent behind the dedicated mid-range cards GeForce GT 650M and GT 750M (DDR3 versions). This makes the Iris Pro even faster than AMDs Radeon HD 8650G and the fastest integrated GPU of 2013. Therefore, many current games can be played fluently in medium or high detail settings and a resolution of 1366 x 768 pixels. In some older or less demanding titels like Diablo III or Fifa 2013, even higher resolutions or quality settings may be possible.

Due to the 22nm 3D Tri-Gate production process, power consumption should be relatively low. The Iris Pro can be found on certain quad-core Haswell CPUs in the 47 Watt TDP range.
