NVIDIA GeForce MX550 vs NVIDIA GeForce MX570
NVIDIA GeForce MX550
► remove from comparison

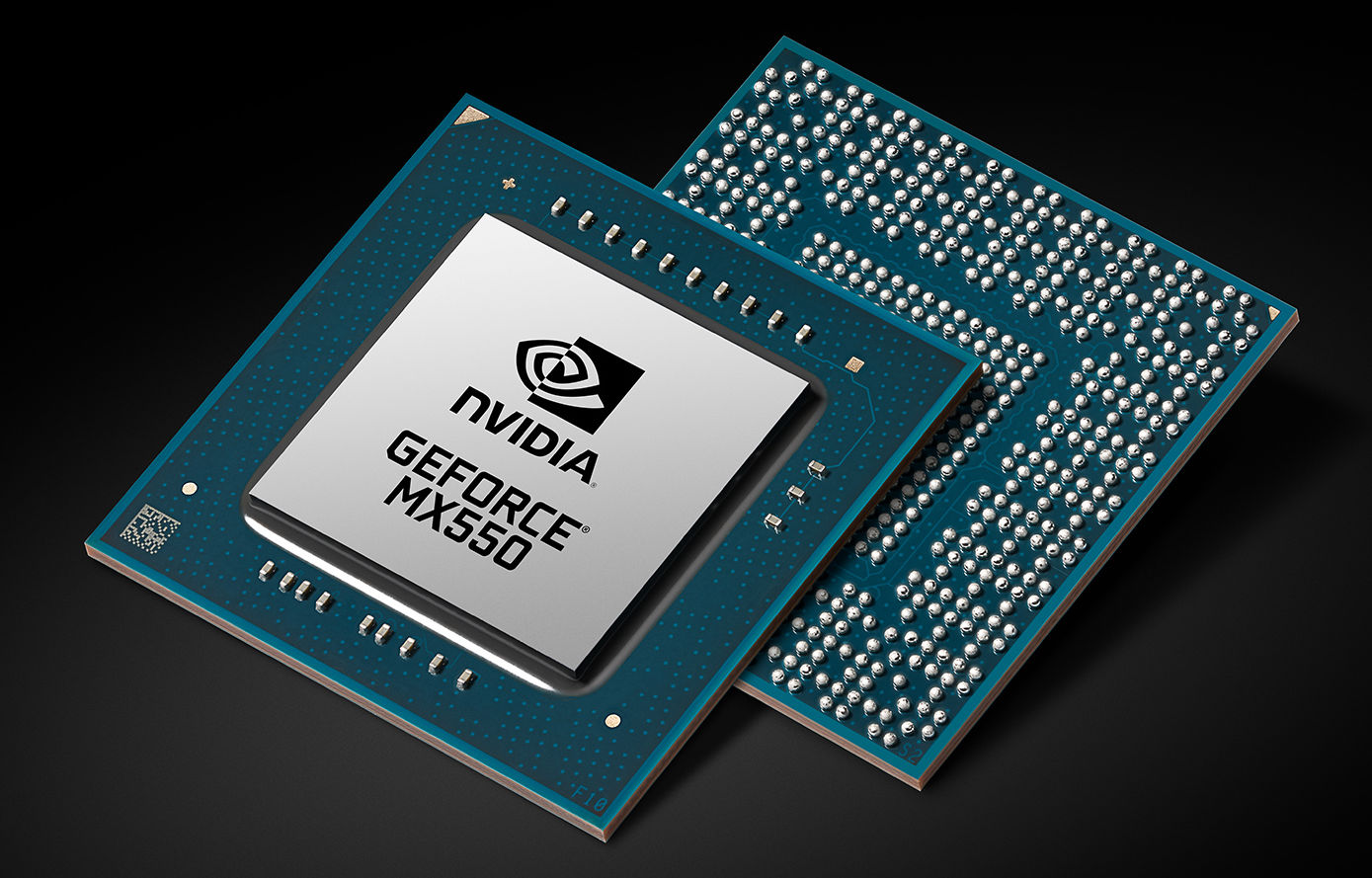

The Nvidia GeForce MX550 (GN18-S5-A1, TU117-670-A1 Chip) is an entry-level mobile graphics card for laptops. It is based on the old Turing TU117 chip (as the older MX450) and uses a 64 Bit memory bus with GDDR6 graphics memory. First benchmarks show a 17% performance increase compared to the old GeForce MX450 which could indicate more shaders (1024 instead of 896). The similarly named GeForce MX570 is around 30% faster and uses the Ampere GA107 chip.
The gaming performance should be similar to the older GeForce GTX 1050 Ti and therefore demanding games will only run in low settings fluently.
The TU117 chip is manufactured on a 12nm TSMC process and should be rated at 25 Watt TGP (as the old MX450).
NVIDIA GeForce MX570
► remove from comparison

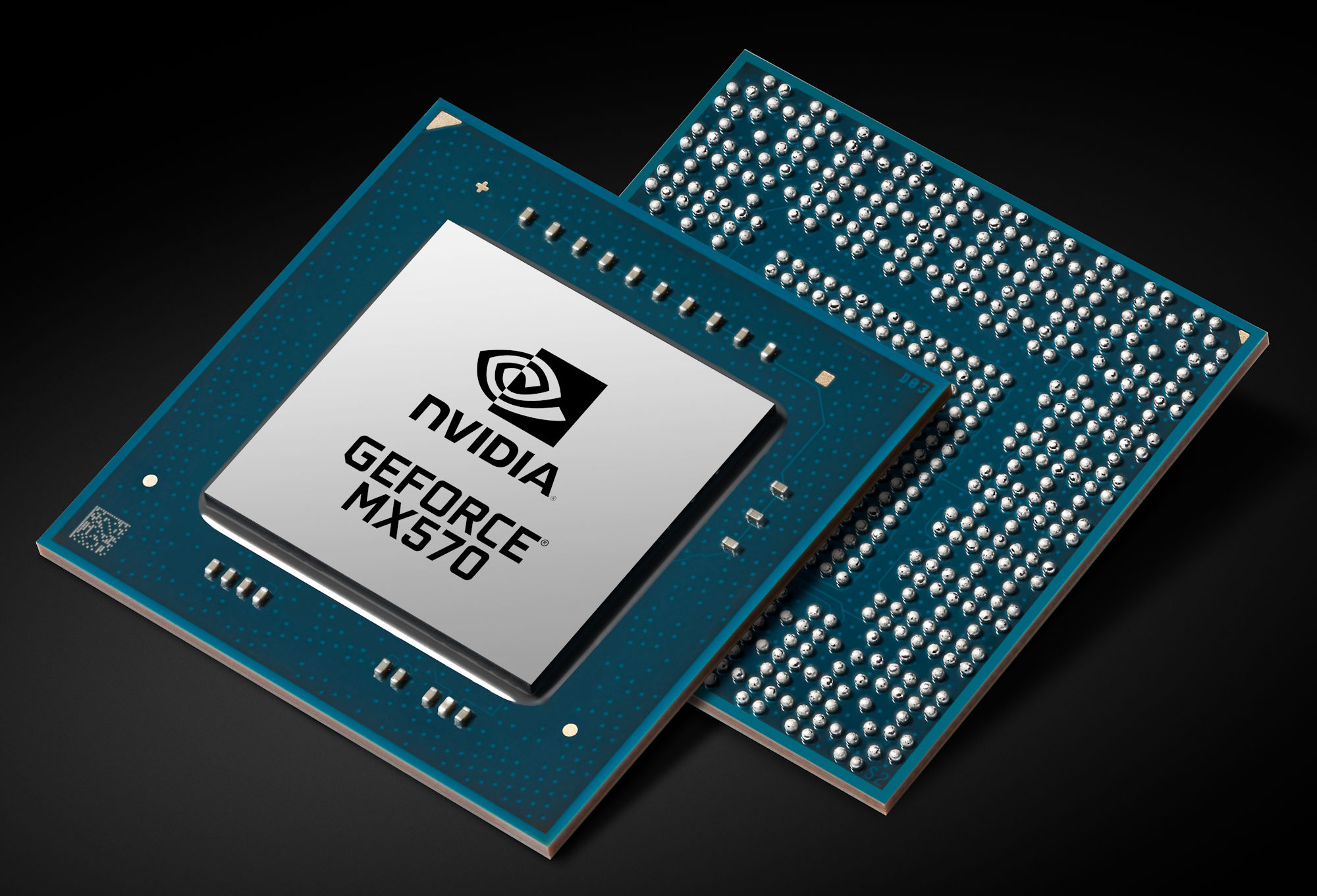

The Nvidia GeForce MX570 or MX570 A (GN20-S5, Device ID 0x25A6) is an entry-level mobile graphics card for laptops. It is based on the Ampere GA107 chip with 2 GB GDDR6. Compared to the similar GeForce RTX 2050, the MX570 offers 2 GB less VRAM and a lower TDP. Compared to the RTX 3050, the MX570 and RTX 2050 offer a greatly reduced memory bus of only 64 Bit. In theory the MX570 also offers Raytracing and Tensor cores, but the performance for Raytracing will be too low. DLSS however could help in selected games.
The gaming performance of the mobile GeForce MX570 is often clearly restricted by the small amount of VRAM. E.g. Indiana Jones and the Great Circle did not even start due to not enough video memory. Other games see big drop offs in performance when increasing detail settings (even compared to modern iGPUs). Therefore, only older games or low demanding games (like Counter-Strike 2) can be played with high quality mode.
The GA107 chip is manufactured on an 8nm process. The raytracing cores are not usable in the MX570.
| NVIDIA GeForce MX550 | NVIDIA GeForce MX570 | |||||||||||||
| GeForce MX500 Series |
|
| ||||||||||||
| Codename | GN18-S5 | GN20-S5 | ||||||||||||
| Architecture | Turing | Ampere | ||||||||||||
| Pipelines | 1024 - unified | 2048 - unified | ||||||||||||
| Core Speed | 1320 (Boost) MHz | 1477 (Boost) MHz | ||||||||||||
| Memory Speed | 12000 MHz | 12000 MHz | ||||||||||||
| Memory Bus Width | 64 Bit | 64 Bit | ||||||||||||
| Memory Type | GDDR6 | GDDR6 | ||||||||||||
| Shared Memory | no | no | ||||||||||||
| API | DirectX 12_1, OpenGL 4.6 | DirectX 12_1, OpenGL 4.6 | ||||||||||||
| Power Consumption | 15-25 Watt | 15-45 Watt | ||||||||||||
| technology | 12 nm | 8 nm | ||||||||||||
| Features | Vulkan 1.2, OpenGL 4.6, OpenCL 3.0, GPU Boost, Optimus, PCIe 4.0, Game Ready Drivers, Win 10 / 11 | Vulkan 1.2, OpenGL 4.6, OpenCL 3.0, GPU Boost, Optimus, PCIe 4.0, Game Ready Drivers, Win 10 / 11 | ||||||||||||
| Date of Announcement | 17.12.2021 | 17.12.2021 | ||||||||||||
| Max. Amount of Memory | 2048 MB |
Benchmarks
3DM Vant. Perf. total + NVIDIA GeForce MX550
Cinebench R15 OpenGL 64 Bit + NVIDIA GeForce MX550
Average Benchmarks NVIDIA GeForce MX550 → 100% n=12
Average Benchmarks NVIDIA GeForce MX570 → 130% n=12
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
Until Dawn
2024
Space Marine 2
2024
Black Myth: Wukong
2024
F1 24
2024
Helldivers 2
2024
EA Sports FC 24
2023
Counter-Strike 2
2023
Baldur's Gate 3
2023
The Witcher 3 v4.00
2023
F1 22
2022
Ghostwire Tokyo
2022
GRID Legends
2022
God of War
2022
Farming Simulator 22
2021
Forza Horizon 5
2021
F1 2021
2021
Cyberpunk 2077 1.0
2020
Horizon Zero Dawn
2020
Strange Brigade
2018
Far Cry 5
2018
X-Plane 11.11
2018
Dota 2 Reborn
2015
The Witcher 3
2015
GTA V
2015Average Gaming NVIDIA GeForce MX550 → 100%
Average Gaming 30-70 fps → 100%
Average Gaming NVIDIA GeForce MX570 → 98%
Average Gaming 30-70 fps → 110%
| NVIDIA GeForce MX550 | NVIDIA GeForce MX570 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | |||
| Indiana Jones and the Great Circle | 0 | |||||||||||||
| Stalker 2 | 3.31 | 2.84 | ||||||||||||
| Call of Duty Black Ops 6 | 45 | 34 | ||||||||||||
| Until Dawn | 35.7 | 23.7 | ||||||||||||
| Space Marine 2 | 22.1 | |||||||||||||
| Black Myth: Wukong | 30 | 14 | 7 | |||||||||||
| F1 24 | 34.7 | 30.5 | 16.6 | 4.3 | ||||||||||
| Senua's Saga Hellblade 2 | 4.61 | |||||||||||||
| Helldivers 2 | 12.6 | |||||||||||||
| EA Sports FC 24 | 62.8 | 42.6 | 12.1 | |||||||||||
| Counter-Strike 2 | 122 | 106 | 45.4 | 34 | ||||||||||
| Cyberpunk 2077 2.2 Phantom Liberty | 32.9 | 13.1 | ||||||||||||
| Baldur's Gate 3 | 34.3 | 26.6 | ||||||||||||
| The Witcher 3 v4.00 | 20.7 | |||||||||||||
| Horizon Zero Dawn | 50 | 36 | 30 | 28 | ||||||||||
| Strange Brigade | 152 | 60 | 52 | 42 | 141.3 | 69.5 | 58 | 45.2 | ||||||
| X-Plane 11.11 | 106 | 88 | 70 | 87.8 | 78.8 | 67.8 | ||||||||
| Final Fantasy XV Benchmark | 75 | 36 | 22 | 73.8 | 37.8 | 26 | ||||||||
| Dota 2 Reborn | 142 | 127 | 111 | 104 | 137.6 | 113.9 | 99.5 | 89.1 | ||||||
| The Witcher 3 | 154 | 92 | 50 | 27 | 128.7 | 90.1 | 33.5 | |||||||
| GTA V | 163 | 154 | 76 | 34 | 135.1 | 139.3 | 72.5 | 36.4 | ||||||
| NVIDIA GeForce MX550 | NVIDIA GeForce MX570 | |||||||||||||
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 2 4 | 1 3 2 | 1 2 3 | 1 2 1 | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 5 7 2 5 | 4 4 6 1 | 3 4 3 | 4 4 1 | | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
