NVIDIA GeForce GTX 780 Ti vs NVIDIA GeForce GTX 760
NVIDIA GeForce GTX 780 Ti
► remove from comparison
The NVIDIA GeForce GTX 780 Ti is a high-end desktop graphics card based on the Kepler architecture in 28 nm. It uses the full GK110 chip with 2880 CUDA cores and was the fastest single chip card at the beginning of 2014. The 780 Ti is much faster than the similar named laptop graphics card Nvidia GeForce GTX 780M (based on the GK104 like the desktop GTX 770 but with lower clock rates).

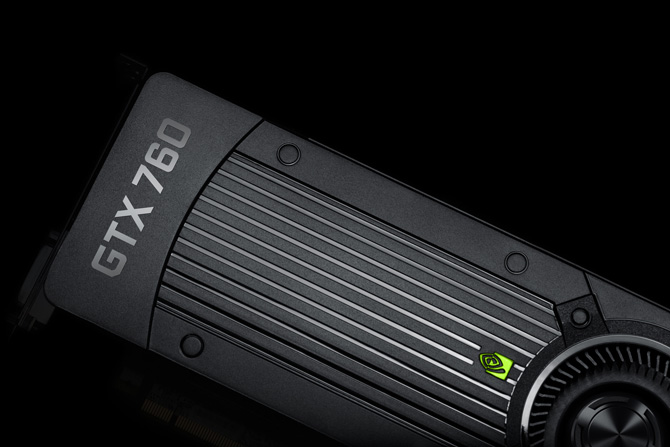

NVIDIA GeForce GTX 760
► remove from comparison
The NVIDIA GeForce GTX 760 is a mid-range desktop graphics card based on the Kepler GK104 chip. It is significantly faster than the mobile Nvidia GeForce GTX 760M for laptops. Depending on the chip temperature and power consumption the core can be clocked between 980-1033 MHz (or even higher). The GDDR5 graphics memory of the 760 is clocked at 3000 MHz (6000 MHz effective).
On average the performance of the GTX 760 is between the GTX 660 and 770 / 680 in the Nvidia lineup and between the Radeon R9 270X and the R9 280 from AMD. The performance is sufficient for maximum detail settings in full HD resolution (for games from 2014 and earlier). However, in some games like Crysis 3 and Thief the average frame rate we tested was only about 30fps (see below).
The power consumption is rated at 160 Watt TDP (load).
| NVIDIA GeForce GTX 780 Ti | NVIDIA GeForce GTX 760 | |||||||||||||||||||
| GeForce GTX 700 Series |
|
| ||||||||||||||||||
| Codename | GK110 | |||||||||||||||||||
| Architecture | Kepler | Kepler | ||||||||||||||||||
| Pipelines | 2880 - unified | 1152 - unified | ||||||||||||||||||
| Core Speed | 875 - 928 (Boost) MHz | 980 - 1033 (Boost) MHz | ||||||||||||||||||
| Memory Speed | 3500 MHz | 3000 MHz | ||||||||||||||||||
| Memory Bus Width | 384 Bit | 256 Bit | ||||||||||||||||||
| Memory Type | GDDR5 | GDDR5 | ||||||||||||||||||
| Max. Amount of Memory | 3 GB | 2048 MB | ||||||||||||||||||
| Shared Memory | no | no | ||||||||||||||||||
| API | DirectX 12 (FL 11_0), Shader 5.0, OpenGL 4.4 | DirectX 11.0, Shader 5.0, OpenGL 4.3 | ||||||||||||||||||
| Power Consumption | 250 Watt | 170 Watt | ||||||||||||||||||
| Transistors | 7.1 Billion | 3.5 Billion | ||||||||||||||||||
| technology | 28 nm | 28 nm | ||||||||||||||||||
| Features | SLI, Purevideo, 3D Vision, PhysX, CUDA, GPU Boost 2.0, GeForce Experience, Adaptive VSync | SLI, Purevideo, 3D Vision, PhysX, CUDA, GPU Boost 2.0, GeForce Experience, Adaptive VSync | ||||||||||||||||||
| Date of Announcement | 07.11.2013 | 25.06.2013 | ||||||||||||||||||
| Link to Manufacturer Page | www.nvidia.de | www.nvidia.de |
Benchmarks
3DM Vant. Perf. total + NVIDIA GeForce GTX 780 Ti
Average Benchmarks NVIDIA GeForce GTX 780 Ti → 100% n=11
Average Benchmarks NVIDIA GeForce GTX 760 → 62% n=11
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
F1 2014
2014
The Evil Within
2014
Ryse: Son of Rome
2014
Alien: Isolation
2014
Fifa 15
2014
Sims 4
2014
Risen 3: Titan Lords
2014
GRID: Autosport
2014
Watch Dogs
2014
Thief
2014
Call of Duty: Ghosts
2013
Battlefield 4
2013
Saints Row IV
2013
Dota 2
2013
GRID 2
2013
Metro: Last Light
2013
BioShock Infinite
2013
Tomb Raider
2013
Crysis 3
2013
Far Cry 3
2012
Hitman: Absolution
2012
Guild Wars 2
2012Average Gaming NVIDIA GeForce GTX 780 Ti → 100%
Average Gaming 30-70 fps → 100%
Average Gaming NVIDIA GeForce GTX 760 → 83%
Average Gaming 30-70 fps → 72%
| NVIDIA GeForce GTX 780 Ti | NVIDIA GeForce GTX 760 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | |||
| F1 2014 | 133 | 131 | 127 | 118 | 132 | 131 | 128 | 111 | ||||||
| The Evil Within | 66.1 | 65.7 | 64.7 | 65.4 | 64.7 | 43.6 | ||||||||
| Ryse: Son of Rome | 89.4 | 84.9 | 67.9 | 63.9 | 85.9 | 71.3 | 37.4 | 35.2 | ||||||
| Alien: Isolation | 250.3 | 234.4 | 166.6 | 116.3 | 242.7 | 176.8 | 97.5 | 67.7 | ||||||
| Middle-earth: Shadow of Mordor | 225.8 | 194.9 | 112.3 | 88 | 167.6 | 102.8 | 61.3 | 37.4 | ||||||
| Fifa 15 | 326.1 | 284.4 | 268.7 | 309.8 | 219 | 181.3 | ||||||||
| Sims 4 | 168.9 | 102.1 | 92.3 | 90.4 | 183 | 97 | 83.7 | 77.8 | ||||||
| Risen 3: Titan Lords | 57.1 | 67.3 | 78.4 | 90 | 56.7 | 66.4 | 63.1 | 59.2 | ||||||
| GRID: Autosport | 284.3 | 159.9 | 139.4 | 122.6 | 290.2 | 154.8 | 128.7 | 73.2 | ||||||
| Watch Dogs | 94.4 | 79.7 | 62.7 | 52.2 | 96.2 | 80.4 | 41.1 | |||||||
| Wolfenstein: The New Order | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |||||||
| The Elder Scrolls Online | 98.2 | 95.7 | 90.1 | 58.6 | 98.9 | 97.9 | 94.8 | 65.1 | ||||||
| Thief | 98.2 | 96.3 | 97.8 | 76.8 | 97.7 | 75.5 | 67.3 | 39.2 | ||||||
| Call of Duty: Ghosts | 170.1 | 154 | 110.6 | 81.8 | 150.2 | 112.5 | 76.2 | 50 | ||||||
| Battlefield 4 | 171 | 147.9 | 136 | 89 | 176.4 | 141.7 | 104.6 | 49.3 | ||||||
| Saints Row IV | 99.6 | 87.7 | 79.6 | 80.6 | 98.5 | 87.9 | 77.8 | 55.3 | ||||||
| Dota 2 | 119.7 | 118.6 | 118.1 | 119.7 | 119.7 | 115.3 | ||||||||
| GRID 2 | 210.4 | 159 | 148.9 | 129.9 | 205.9 | 161.2 | 150.2 | 79.5 | ||||||
| Metro: Last Light | 141.3 | 138.1 | 123.9 | 80.9 | 126.4 | 112.5 | 73.5 | 41.8 | ||||||
| BioShock Infinite | 289.9 | 237.9 | 218.6 | 116.4 | 269.5 | 186.8 | 164.8 | 65.3 | ||||||
| Tomb Raider | 485.5 | 391 | 309 | 148.6 | 398.7 | 235.8 | 167.1 | 72.9 | ||||||
| Crysis 3 | 146.2 | 135.7 | 107.2 | 60.3 | 142 | 119.3 | 83 | 33.3 | ||||||
| Far Cry 3 | 131.4 | 119.7 | 100.2 | 65.6 | 132.4 | 123.6 | 91 | 34.3 | ||||||
| Hitman: Absolution | 96 | 90 | 80.1 | 74 | 93.7 | 89.4 | 74.9 | 40.7 | ||||||
| Guild Wars 2 | 131.6 | 72.9 | 66.4 | 131.2 | 72.8 | 50.4 | ||||||||
| NVIDIA GeForce GTX 780 Ti | NVIDIA GeForce GTX 760 | |||||||||||||
| low | med. | high | ultra | QHD | 4K | low | med. | high | ultra | QHD | 4K | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 9 15 | 12 11 | 15 9 | 2 18 4 | | | < 30 fps < 60 fps < 120 fps ≥ 120 fps | 1 9 15 | 15 8 | 3 15 6 | 12 9 1 | | |
For more games that might be playable and a list of all games and graphics cards visit our Gaming List
