Intel Arc B580 vs Intel Arc A310 vs Intel Arc A380

The Intel Arc B580 Limited Edition is Intel's latest contribution to the GPU market and is aimed at gamers and content creators who value modern features and an attractive price-performance ratio. With the Battlemage architecture, the card offers numerous current technologies and improved performance with lower power consumption. In addition, the graphics card is a good choice for the price-conscious buyer due to its attractive price.

Features

Based on the Battlemage architecture, Intel has further improved the previous features and now delivers more performance than before. This means there is support for hardware-accelerated ray tracing with 20 RT cores for realistic lighting and shadows. XeSS (Xe Super Sampling) is also included and is the counterpart to AMD's FSR or Nvidia's DLSS technology. XeSS is Intel's AI-supported upscaling technology and improves performance without compromising image quality. However, implementation is the responsibility of the game manufacturers. There is also hardware support for the AV1 codec, which is ideal for efficient video streaming. On the connection side, HDMI 2.1 and DisplayPort 2.0 are comparatively well positioned.

Performance

The Intel Arc B580 is specially optimized for 1,080p and 1,440p gaming. It delivers smooth frame rates on high graphics settings for current AAA games. With 12 GB of GDDR6 memory and a 192-bit memory interface, it offers sufficient performance for demanding applications such as video editing and 3D rendering.

In comparison, the Intel Arc B580 can compete with the Nvidia GeForce RTX 4060 and the AMD Radeon RX 7600. It can show a significant increase in performance, especially in games that support XeSS. The ray tracing performance is better than that of direct competitors in the same price range.

Power consumption

With a TDP of 190 watts, the Intel Arc B580 is not quite as economical as an Nvidia GeForce RTX 4060 or the AMD Radeon RX 7600. However, compared to an Intel Arc A580, the Intel Arc B580 performs significantly better and shows that Intel is steering development in the right direction.

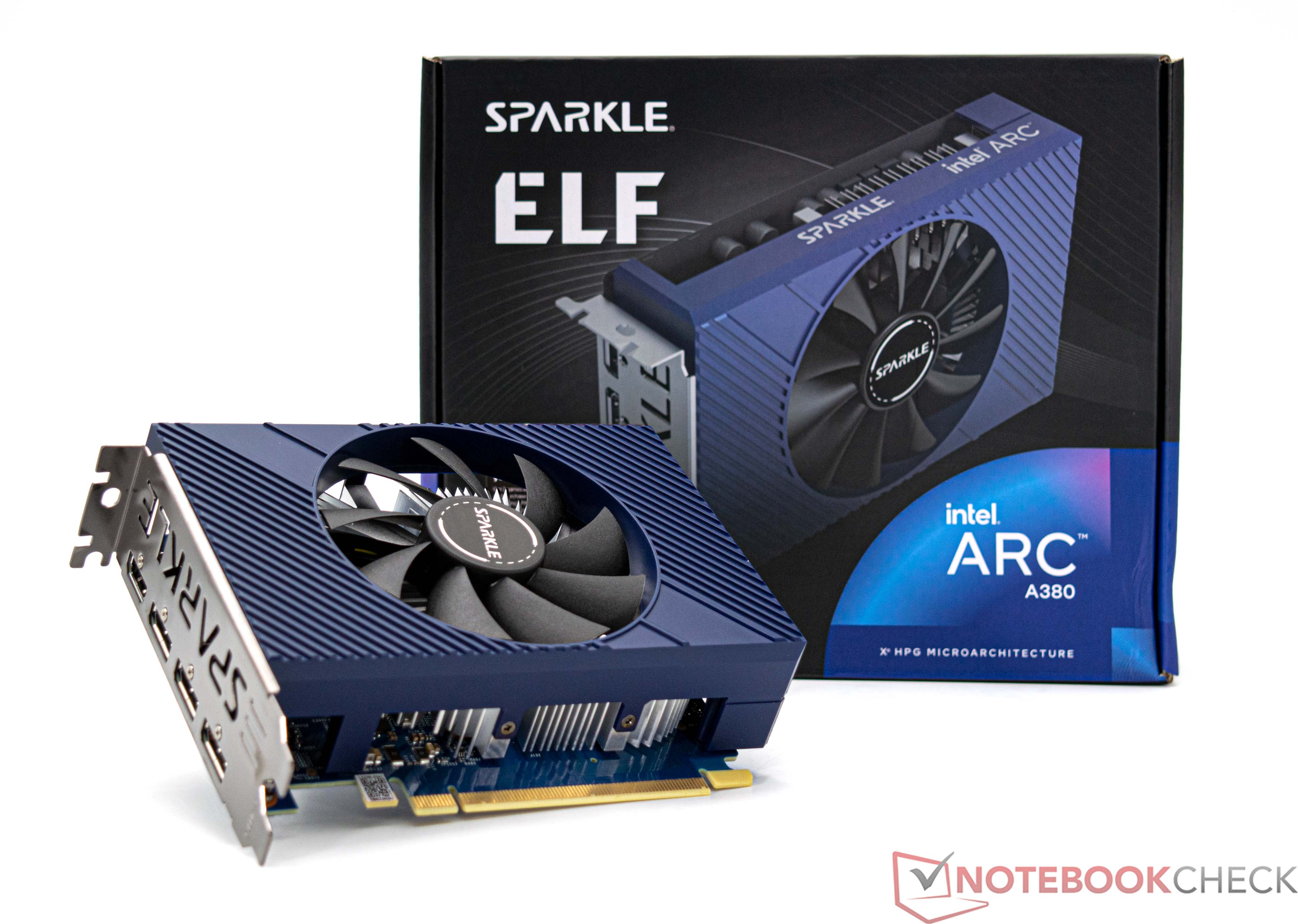

The Intel Arc A380 is a low-cost single-seed desktop GPU and is manufactured at TSMC using the 6 nm process. The graphics processor has the internal designation DG2-128 and combines 1,024 shader units. In terms of VRAM, you still get 6 GB GDDR6, which are connected via a 96-bit interface (15.5 Gbps, 186 GB/s). This makes the Intel Arc A380 the fourth fastest graphics card model from Intel.

Features

As the Intel Arc A380 is also based on the Alchemist architecture, the small model also has the same features as the faster models of the current Arc models. Nevertheless, there are significant performance limitations compared to the faster models. The most useful feature is certainly AV1 support, which enables encoding and decoding on the hardware side.

Performance

The performance of the Intel Arc A380 cannot keep up with current graphics cards from AMD and Nvidia. In view of this, this graphics card is not recommended exclusively for gaming use.

Power consumption

The power consumption of the Intel Arc A380 is estimated by the manufacturer at 75 watts (TGP). In terms of efficiency, the Intel Arc A380 is not convincing due to its low 3D performance. In the internal duel, the Intel Arc A380 is slightly more efficient than an Intel Arc A580 or an Intel Arc A750.
