AMD A4-7210 vs AMD A6-7310
AMD A4-7210
► remove from comparison

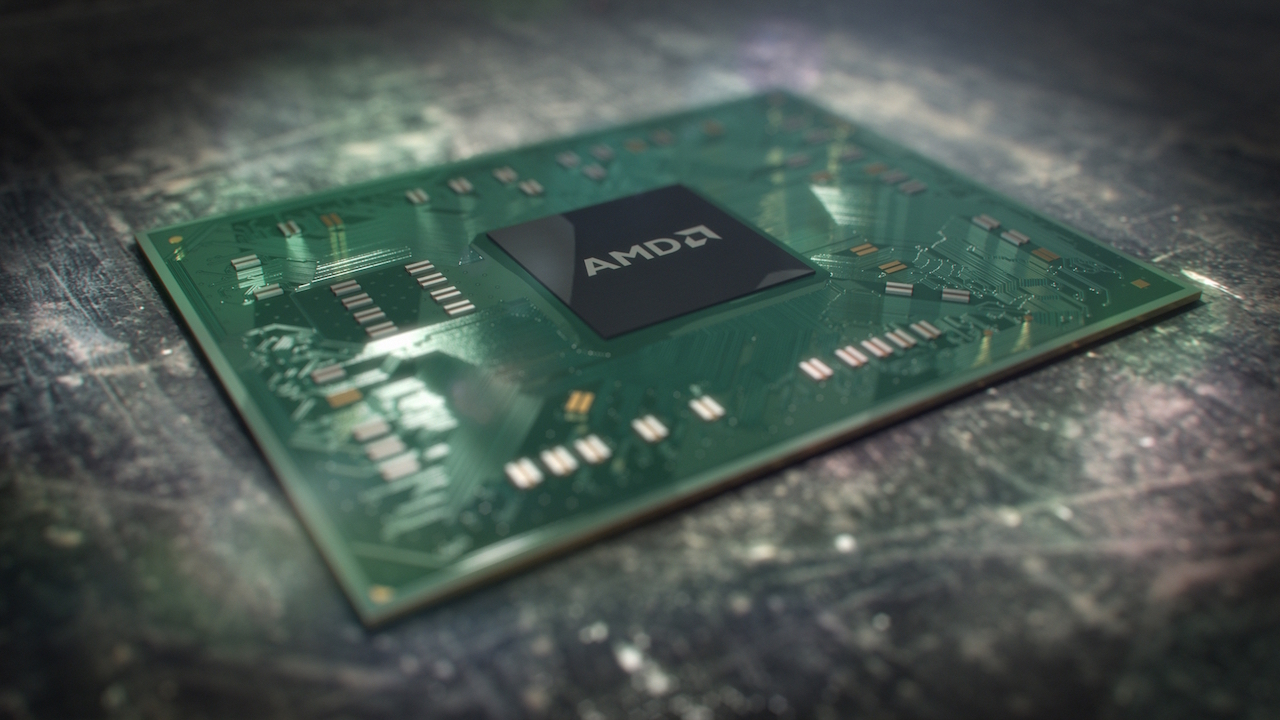

The AMD A4-7210 is a mobile quad-core SoC (codenamed "Carrizo-L") for entry-level devices and subnotebooks, which has been presented in May 2015. In addition to 4 CPU cores clocked at up to 2.2 GHz (boost clock), the 28 nanometer chip also integrates a Radeon R3 GPU, a single-channel DDR3L-1600 memory controller and the southbridge with various I/O-ports. The TDP of the A4-7210 can be configured from 12 to 25 Watt. The predecessor AMD A4-6210 features similar specifications except the slower clock speed (at least boost), the configurable TDP, and the new FP4 package (compatible to the mainstream Carrizo SoCs).
Architecture
Carrizo-L, Beema (for notebooks) and Mullins (for tablets and compact subnotebooks, same die) are based on AMD's Puma+ architecture, which is the successor to the previous Jaguar design (Kabini and Temash APUs). Neither the performance per clock nor the feature set (including SSE up to 4.2, AVX and AES) have been modified. However, AMD managed to reduce the leakage current, enabling significantly higher (boost) clock speeds. This leads to a more responsive system and better overall performance. As its predecessor, the chip is manufactured in 28 nm.
Performance
The processor performance depends on the configured TDP of the SoC. Set to 25 Watt, the CPU should be faster than the old A6-6210.
Graphics
The integrated Radeon R3 should be similar to the Beema based Radeon R3 GPU with 128 shaders. In our first review sample the GPU was clocked at 686 MHz and therefore 86 MHz faster than in the A4-6210. Only a few current games (as of 2014) are thus playable in low settings.
Power Consumption
The power consumption of the entire SoC is rated at 12 to 25 watts. Thus, the APU is also suitable for small subnotebooks.
AMD A6-7310
► remove from comparison
The AMD A6-7310 is a mobile quad-core SoC (codenamed "Carrizo-L") for entry-level devices and subnotebooks, which has been presented in May 2015. In addition to 4 CPU cores clocked at up to 2.4 GHz (boost clock), the 28 nanometer chip also integrates a Radeon R4 GPU, a single-channel DDR3L-1866 memory controller and the southbridge with various I/O-ports. The TDP of the A6-7310 can be configured from 12 to 25 Watt. The predecessor AMD A6-6310 features similar specifications except maybe a changed base clock, the configurable TDP, and the new FP4 package (compatible to the mainstream Carrizo SoCs). The top model A8-7410 of Carrizo-L in comparison clocks 100 MHz higher and supports DDR3L-1866.
Architecture
Carrizo-L, Beema (for notebooks) and Mullins (for tablets and compact subnotebooks, same die) are based on AMD's Puma+ architecture, which is the successor to the previous Jaguar design (Kabini and Temash APUs). Neither the performance per clock nor the feature set (including SSE up to 4.2, AVX and AES) have been modified. However, AMD managed to reduce the leakage current, enabling significantly higher (boost) clock speeds. This leads to a more responsive system and better overall performance. As its predecessor, the chip is manufactured in 28 nm.
Performance
The processor performance depends on the configured TDP of the SoC. Set to 25 Watt, the CPU should be slightly faster than the old A6-6310 and therefore similar performance to a Haswell-based Pentium or ULV Core i3.
Graphics
The integrated Radeon R4 should be similar to the Beema based Radeon R4 GPU with 128 shaders. Only a few current games (as of 2014) are thus playable in low settings, but older and less demanding titels should run flawlessly.
Power Consumption
The power consumption of the entire SoC is rated at 12 to 25 watts. Thus, the APU is also suitable for small subnotebooks.
| Model | AMD A4-7210 | AMD A6-7310 | ||||||||||||||||||||||||
| Codename | Carrizo-L | Carrizo-L | ||||||||||||||||||||||||
| Series | AMD AMD A-Series | AMD AMD A-Series | ||||||||||||||||||||||||
| Series: AMD A-Series Carrizo-L |
|
| ||||||||||||||||||||||||
| Clock | 1800 - 2200 MHz | 2000 - 2400 MHz | ||||||||||||||||||||||||
| L1 Cache | 256 KB | 256 KB | ||||||||||||||||||||||||
| L2 Cache | 2 MB | 2 MB | ||||||||||||||||||||||||
| Cores / Threads | 4 / 4 | 4 / 4 | ||||||||||||||||||||||||
| TDP | 15 Watt | 15 Watt | ||||||||||||||||||||||||
| Transistors | 930 Million | 930 Million | ||||||||||||||||||||||||
| Technology | 28 nm | 28 nm | ||||||||||||||||||||||||
| Socket | FP4 BGA | FP4 BGA | ||||||||||||||||||||||||
| Features | MMX, SSE4.2, AES, AVX, BMI1, F16C, AMD64, VT | MMX, SSE4.2, AES, AVX, BMI1, F16C, AMD64, VT | ||||||||||||||||||||||||
| iGPU | AMD Radeon R3 (Mullins/Beema) ( - 686 MHz) | AMD Radeon R4 (Beema) ( - 800 MHz) | ||||||||||||||||||||||||
| Architecture | x86 | x86 | ||||||||||||||||||||||||
| Announced | ||||||||||||||||||||||||||
| Manufacturer | products.amd.com | products.amd.com | ||||||||||||||||||||||||
| max. Temp. | 90 °C |
Benchmarks
Average Benchmarks AMD A4-7210 → 100% n=21
Average Benchmarks AMD A6-7310 → 100% n=21
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
