Intel Core i5-3570K vs Intel Core i5-3470

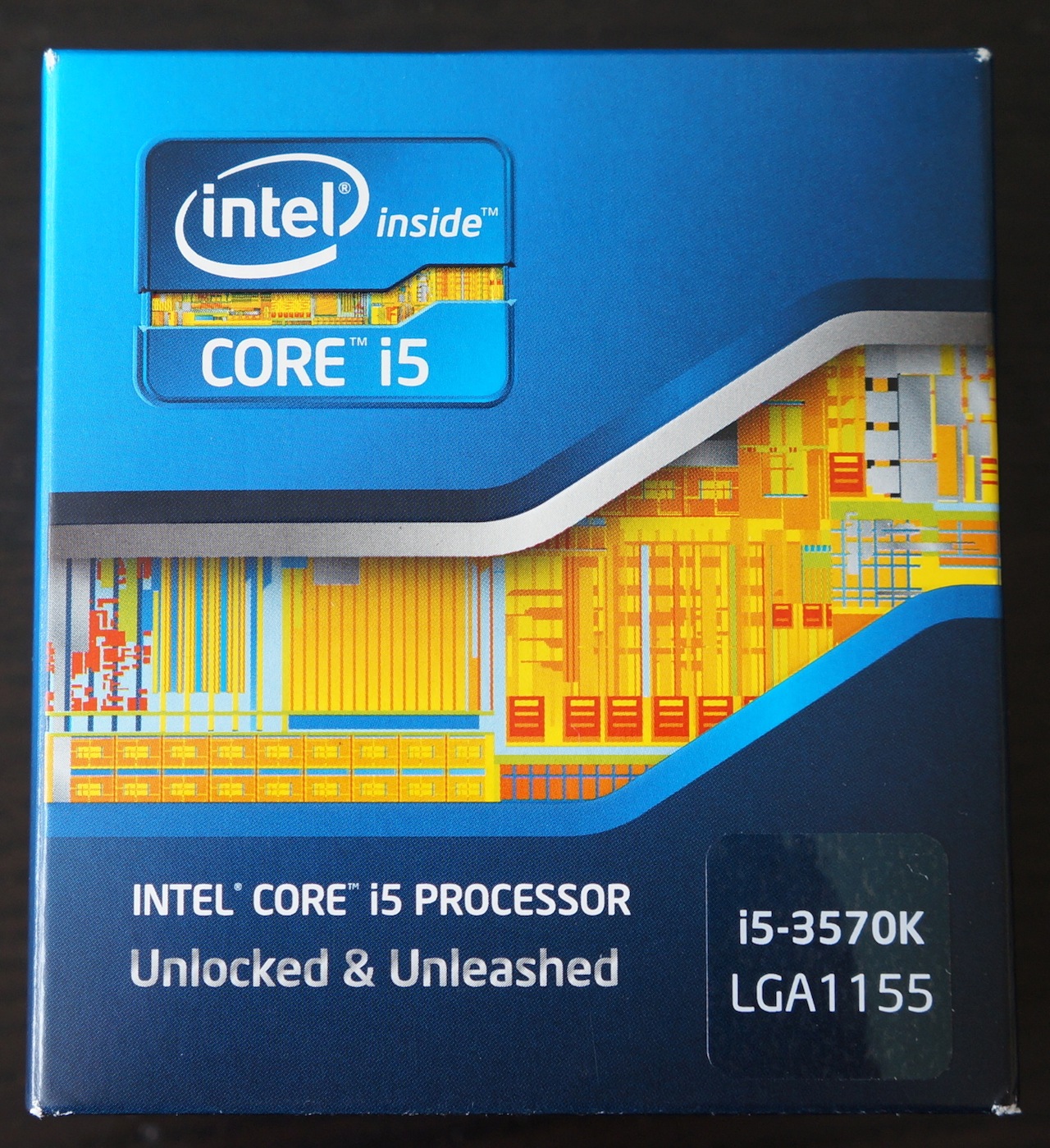

Intel Core i5-3570K
► remove from comparison
The Intel Core i5-3570K is a fast quad-core desktop processor based on the Ivy Bridge architecture. Each core offers a base speed of 3.4 GHz, but can dynamically increase clock rates with Turbo Boost up to 3.6 GHz (for 4 active cores), 3.7 GHz (for 2 active cores) and 3.8 GHz (for 1 active core). Furthermore, the "K" series processors offers an unlocked multiplier for easy overclocking.
Ivy Bridge is an enhanced die shrink of the Sandy Bridge architecture with improvements on both GPU and CPU performance. The CPUs are produced in 22nm (versus 32nm Sandy Bridge CPUs) and are the first to introduce 3D transistors for increased energy efficiency when compared to similarly clocked Sandy Bridge processors. Other new features are integrated PCI Express 3.0 and DDR3(L)-1600 support.
The performance of the Core i5-3570K is slightly above a similarly clocked Sandy Bridge processor due to slight architectural improvements. Compared to AMD's fastest desktop CPU (FX-8350), the Core i5-3570K offers significantly higher performance per thread, but features less cores (4 instead of 8). Overall, the Core i5 is still a bit faster in most applications.
The integrated Intel HD Graphics 4000 GPU offers 16 Execution Units (EUs) clocked at 650 MHz up to 1150 MHz with Turbo Boost. For recent games, the performance is only sufficient for low resolutions and details.
The total power consumption of the CPU, graphics and memory controller is specified by Intel at 77 watts (TDP).
Intel Core i5-3470
► remove from comparison
The Intel Core i5-3470 is a fast LGA1155 quad-core desktop processor based on the Ivy Bridge architecture. Each core offers a base speed of 3.2 GHz, but can dynamically increase clock rates with Turbo Boost up to 3.4 GHz (for 4 active cores), 3.5 GHz (for 2 active cores) and 3.6 GHz (for 1 active core).
Ivy Bridge is an enhanced die shrink of the Sandy Bridge architecture with improvements on both GPU and CPU performance. The CPUs are produced in 22nm (versus 32nm Sandy Bridge CPUs) and the first to introduce 3D transistors for increased energy efficiency when compared to similarly clocked Sandy Bridge processors. Other new features are integrated PCI Express 3.0 and DDR3(L)-1600 support.
The performance of the Core i5-3470 is slightly above a similarly clocked Sandy Bridge processor due to some architectural improvements. Compared to AMD's fastest desktop CPU (FX-8350), the Core i5-3470 offers higher performance per thread, but features less cores (4 instead of 8). Overall, the Core i5 is just slightly faster in most applications.
The integrated Intel HD Graphics 2500 GPU offers 6 Execution Units (EUs) clocked at 650 MHz up to 1100 MHz with Turbo Boost. The very low performance is only sufficient for some older and less demanding games.
The total power consumption of the CPU, graphics and memory controller is specified by Intel at 77 watts (TDP).
| Model | Intel Core i5-3570K | Intel Core i5-3470 | ||||||||||||||||||||||||
| Codename | Ivy Bridge | Ivy Bridge | ||||||||||||||||||||||||
| Series | Intel Core i5 (Desktop) | Intel Core i5 (Desktop) | ||||||||||||||||||||||||
| Series: Core i5 (Desktop) Ivy Bridge |
|
| ||||||||||||||||||||||||
| Clock | 3400 - 3800 MHz | 3200 - 3600 MHz | ||||||||||||||||||||||||
| L1 Cache | 256 KB | |||||||||||||||||||||||||
| L2 Cache | 1 MB | 1 MB | ||||||||||||||||||||||||
| L3 Cache | 6 MB | 6 MB | ||||||||||||||||||||||||
| Cores / Threads | 4 / 4 | 4 / 4 | ||||||||||||||||||||||||
| TDP | 77 Watt | 77 Watt | ||||||||||||||||||||||||
| Transistors | 1400 Million | |||||||||||||||||||||||||
| Technology | 22 nm | 22 nm | ||||||||||||||||||||||||
| Die Size | 160 mm2 | |||||||||||||||||||||||||
| max. Temp. | 67.4 °C | 67.4 °C | ||||||||||||||||||||||||
| Socket | 1155 | FCLGA1155 | ||||||||||||||||||||||||
| Features | HD Graphics 4000 (650-1150), Dual Channel DDR3-1600 Memory Controller, Intel HD Graphics 4000 650 - 1150 MHz, VT-x (with EPT), AES, Intel 64, Anti-Theft, Idle States, Enhanced SpeedStep, Themal Monitoring, Execute Disable Bit | HD Graphics 2500 (650-1100 MHz), SSE 4.1/4.2, AVX, Trusted Execution, AES, Dual Channel Memory Controller DDR3-1600 (max 32GB) | ||||||||||||||||||||||||
| iGPU | Intel HD Graphics 4000 (650 - 1150 MHz) | Intel HD Graphics 2500 (650 - 1100 MHz) | ||||||||||||||||||||||||
| Architecture | x86 | x86 | ||||||||||||||||||||||||
| $235 U.S. | $184 U.S. | |||||||||||||||||||||||||
| Announced | ||||||||||||||||||||||||||
| Manufacturer | ark.intel.com | ark.intel.com |
Benchmarks
Average Benchmarks Intel Core i5-3570K → 100% n=14
Average Benchmarks Intel Core i5-3470 → 99% n=14
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
